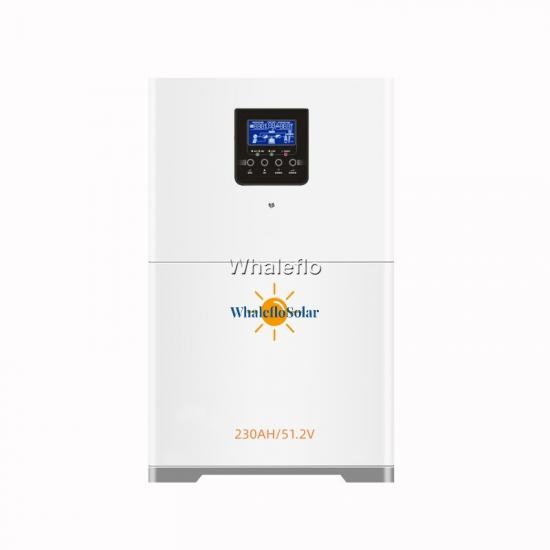

WhalefloSolar All in One 5kwh Solar Storage Battery System with 5kva Pure Sine Wave 500V DC Solar Hybrid Inverter

WhalefloSolar's All-in-One 5kWh Solar Storage Battery System features a Pure Sine Wave 5kVA Hybrid Inverter with a 500V DC Input.

  • Product Origin:

    China
  • Brand:

    Whaleflo
  • Item NO.:

    LD5548JMH
  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port
  • Color:

    White
  • Lead Time:

    7-30 working days
  • Payment:

    T/T,Paypal,Western Union Transfer
  • MOQ:

    10

Hot Products

Products Description


WhalefloSolar All-in-One 5kWh Solar Storage Battery System

Product Description:
The WhalefloSolar All-in-One 5kWh Solar Storage Battery System is a high-performance solar solution designed to provide reliable power storage and conversion for your home or business. The system is equipped with a 5kVA Pure Sine Wave Hybrid Inverter with a 500V DC input, ensuring efficient energy conversion and stable power output.

Key Features:

  1. Solar storage battery system with an integrated design for easy installation and usage.
  2. 5kWh capacity provides a reliable power storage solution.
  3. 5kVA Pure Sine Wave Hybrid Inverter ensures efficient energy conversion.
  4. 500V DC input suitable for solar charging systems.

Applications:

  • Home solar PV systems
  • Commercial solar projects
  • Emergency backup power

Whether you are looking for a renewable energy solution or a reliable backup power option, the WhalefloSolar 5kWh Solar Storage Battery System is the ideal choice. Enhance your energy sustainability, experience efficient energy conversion, and stable power output. Upgrade to WhalefloSolar today.

WhalefloSolar system

Product Parameters
Inverter Model
LD5548JMH
LD11048JMH
Rated power
5500VA/5500W
11000VA/11000W
Input
Voltage
230VAC
Voltage range
170-280VAC(UPSmodel)90-280VAC(Inverter Mode)
Frequency Range
50Hz/60Hz(Automatic adaptation)
Output
Output voltage
230VAC±5%
Peak Power
11000VA
22000VA
Conversion efficiency (maximum)
94%
Output frequency
50/60Hz±0.1%
Switching time
10ms (computer equipment), 30ms (home appliances)
Output waveform
Pure Sine Wave
Load loss
<55W
<80W
Solar charging and mains charging
Solar charging method
MPPT
PV maximum input power
5500W
2×5500W
MPPT input voltage range
90-500Vdc
Maximum PV charging current
100A
150A
Maximum AC charging current
80A
120A
Maximum charging current
100A
150A
Battery model
LD100AH/51.2V/100E
LD230AH/51.2V/200E
Battery capacity
5120WH
11776WH
Battery voltage
51.2VDC
51.2VDC
Battery Type
Lithium Iron Phosphate (LiFePo4)
Full charge voltage (FC)
56V
Full discharge voltage (FD)
42V
Maximum continuous discharge current
100A
200A
Maximum discharge current
120A(1 minute)
230A(1 minute)
Protect
BMS, Circuit Breaker
Charging voltage
56V
Charging current (recommended)
50A(0.5C)
115A(0.5C)
Charging current (maximum)
100A
200A
