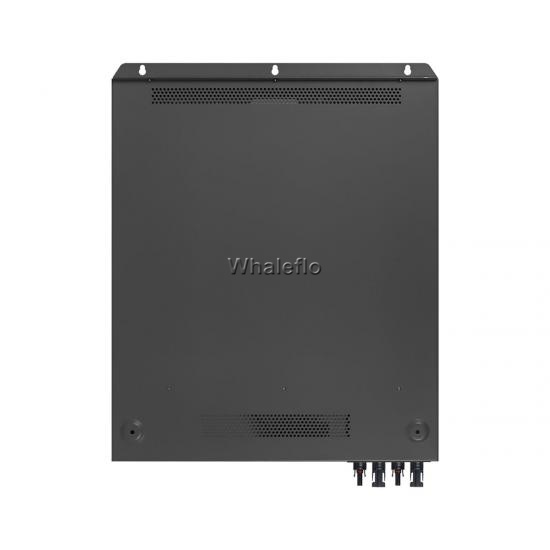

WhalefloSolar 48V 500V DC Dual MPPT 11kW Hybrid Solar Inverter BMS Parallel Supported
Description
Harness the power of the sun like never before with the WhalefloSolar 48V Dual MPPT 11kW Solar Inverter. This advanced solar inverter is designed to maximize the utilization of solar energy, allowing you to make the most of your solar panels.

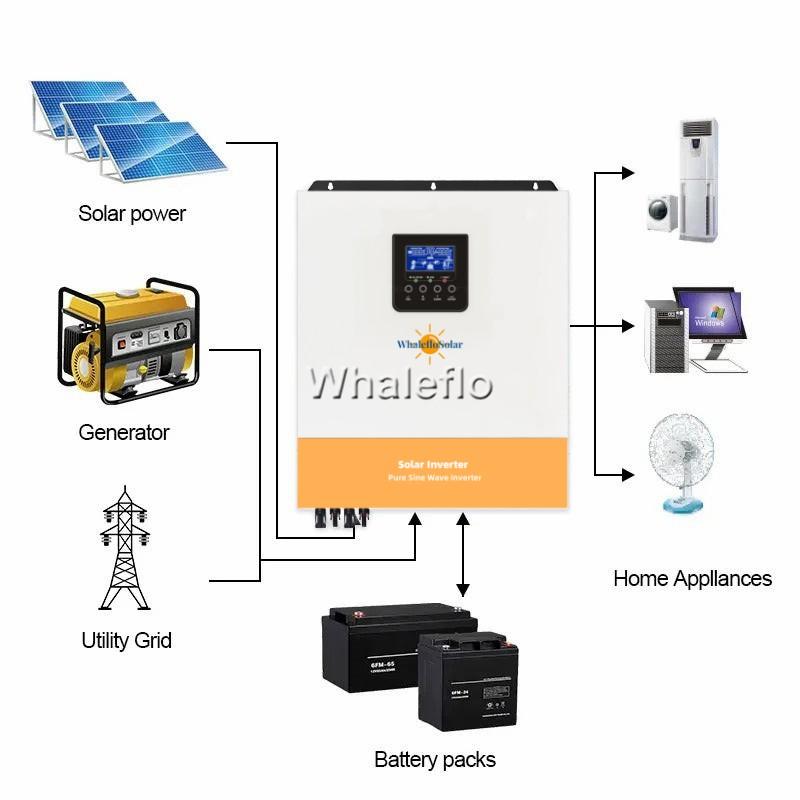

With its dual MPPT (Maximum Power Point Tracking) technology, this inverter efficiently converts the DC power generated by your solar panels into usable AC power for your home or business. The 48V system voltage ensures compatibility with a wide range of solar panel configurations, providing flexibility and convenience.
Featuring a robust 11kW power output, the WhalefloSolar inverter is capable of handling substantial energy demands. Whether you're looking to power your residential property or commercial establishment, this inverter can meet your needs.
Designed with reliability and durability in mind, the WhalefloSolar 48V Dual MPPT 11kW Solar Inverter ensures long-lasting performance. Its high-quality components and advanced cooling system ensure efficient operation even in challenging environments.
Installation is made easy with the user-friendly design of this solar inverter. The intuitive interface and clear instructions allow for a seamless setup process, reducing any hassle or guesswork.
Take control of your energy consumption and reduce your carbon footprint with the WhalefloSolar 48V Dual MPPT 11kW Solar Inverter. Embrace the power of renewable energy and enjoy sustainable, cost-effective electricity for years to come.
| GD series High frequency inverter data sheet | ||||
| Model | 11048JMH | |||
| Input | Phase | L+N+PE | ||
| Nominal Voltage | 220/230/240VAC | |||
| Voltage Range | 90-280VAC±3V（Normal Mode) 170-280VAC±3V（UPS Mode） | |||
| Frequency Range | 50Hz/60Hz(Adaptive) | |||
| Output | Rated Power | 11000W | ||
| Output Voltage(AC) | 220/230/240VAC±5% | |||
| Output Frequency | 50/60Hz±0.1% | |||
| Waveform | Pure sine wave | |||
| Transfer Time( Optional) | 10ms for computer , 20ms for home appliances | |||
| Peak power | 22000VA | |||
| Overload |
Battery Mode： 21s@105%~150% Load 11s@150%~200% Load 400ms@>200% Load |
|||
| Peak efficiency (battery mode) | >98% | |||
| Battery | Rated voltage |
48VDC |
||
| Constant voltage charging voltage | 56.4Vdc | |||
| Floating charge voltage (Optional) | 54Vdc | |||
| charger | PV charging method | MPPT | ||
| PV max input power | 2×5500W | |||
| MPPT tracking range |
90~500Vdc |
|||
| Max PV input voltage |
500Vdc |
|||
| Max PV charging current | 150A | |||
| Max AC charging current | 120A | |||
| Max charging current | 160A | |||
| Display | LCD display | Operating mode/load/input/output, etc. | ||
| Communication port | RS232 | 5PIN/Pitch2.0mm, baud rate 2400 | ||
| Expansion & configuration port |
lithium battery BMS communication card, WIFI card, dry contact card, etc. |
|||
| Parallel interface | optional | |||
| Environmental parameters | Operating environment temperature | -10~50℃ | ||
| Operating environment humidity | 20%~95%（Non condensing） | |||
| Storage temperature | -15~60℃ | |||
| Altitude |
The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040 |
|||
| noise | ≤50db | |||
| Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||
