WhalefloSolar 3000VA Solar Inverter with Built-In MPPT - Efficient Power for Your Solar System
Product Details:
Say goodbye to energy waste and hello to a more efficient and eco-friendly solar power system. The WhalefloSolar 3000VA solar inverter is the key to maximizing the potential of your solar panels, reducing your energy bills, and contributing to a sustainable future. Upgrade today and experience the difference.
Specification:
Model
UD0512R
UD0812R
UD1012R
UD1512/24R
UD1012/24
UD1512/24
UD2012/24
UD3024/48
UD5024/48
AC Input Voltage
220VAc(standard)
220VAC(standard)
Input Voltage range
154-275VAC±5V(Nor Model)
154-264VAC 3V(Nor Model)185-264VAC 3V(UPS model)
175-285VAC3V(AVR Type)
Input frequency
50/60Hz±5%
50/60Hz±5%
out put power
500VA
300w
800VA
500w
1000VA
800w
150QVA
1200w
1000VA
800w
1500VA 2000VA
1200w 1600w
3000VA
2400w
5000VA
4000w
Acmodel output voltage
with AVR function 220V±10%
the output Voltage under the mains is the someas the
irput Voltage(with AVR function 220V10%)
Acmodel outout frequency
The output frequency under the mains is the same as
the input frequency
Tho output frequency under the mains is the same as
tho inputfrequency
Battery model output Voitage
220VAC±3%
220VAC±10%
Battery model output frequency
50HZ or 60HZ±1%
50Hz or 60HZ±1%
Battery model output wave
Pure sine wave
Pure sine wave
Battery type
External lood-acid battery,Gel battery.
water battery or lithium bottery
External lead-acid battery,Gel battery.
water battery or Lithium battery
Battery Voltage
12VDC
12VDc
12VDC
12/24VDC
12/24VDC
12/24VDC
12/24VDC
24/48VDC
24/48VDC
Battery charging Voltage
13.75VDC
13.75VDC
13.75VDC
13.75/27VDC
13.75/27VDC
13.75/27VDC
13.75/27VDC
27/54VDC
27/54VDC
Maximum pv orray power
12V:400w 24V:800w
12V:8000w 24V:1600w 48V:3200w
solar input voltage range
12V:PWM 15V-30VDC
24V:PWM 30V-60VDC
12V: MPPT 15V-150VDC/
24V:MPPT 30V-150VDC/
48V:MPPT 60V-150VDC/
PWM 15-30VDC
PWM 30V-60VDC
PWM 60V-105VDC
Maximum PV Display
open Circuit Voltage
12V:PWM 30VDC
24: PWM 60VDC
12V:MPPT150VDC/
24V:MPPT150VDC
48V:MPPT 150VDC
PWM 30VDC
/PWM 60VDC
/PWM 105VDC
Maximum solar charging current
30A
60A
AC Maximum Ac charge current
8A
15A
20A
30A/18A
15A/8A
30A/15A
40A/20A
30A/15A
42A/21A
Battery charging Voltoge range
154-275VAC±5V
154-280VAC
Transfer time
10ms
≤10ms (UPS)/≤20ms (INV)
load peak ratio
(MAX)3:1
(MAX)3:1
ProtectiVe function
Under inverter: overload protection,short circuit protection,low voltage protectlion.
(with battery anti-reVerse connection,board).

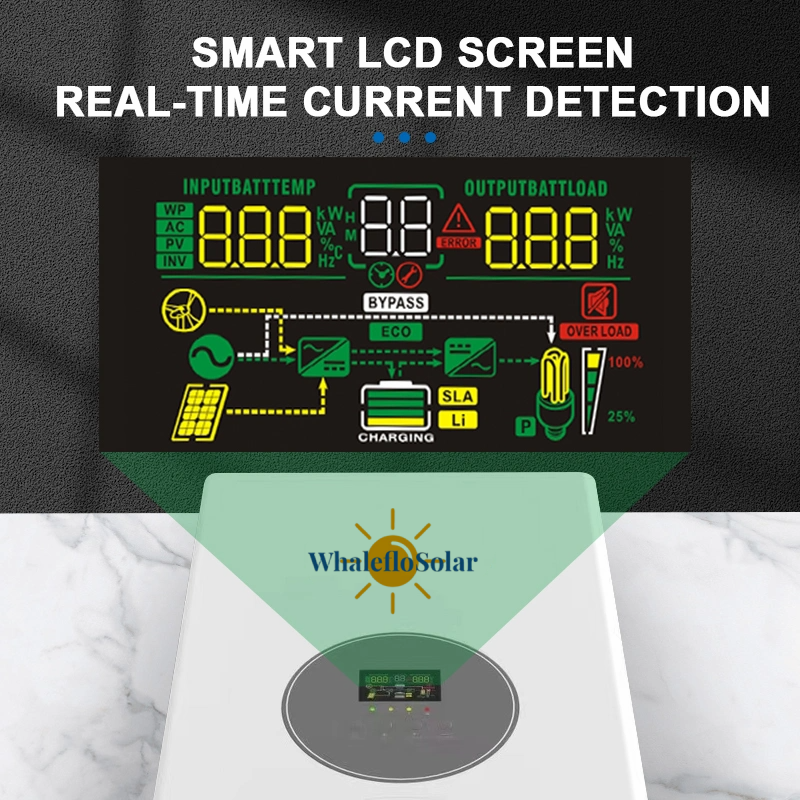

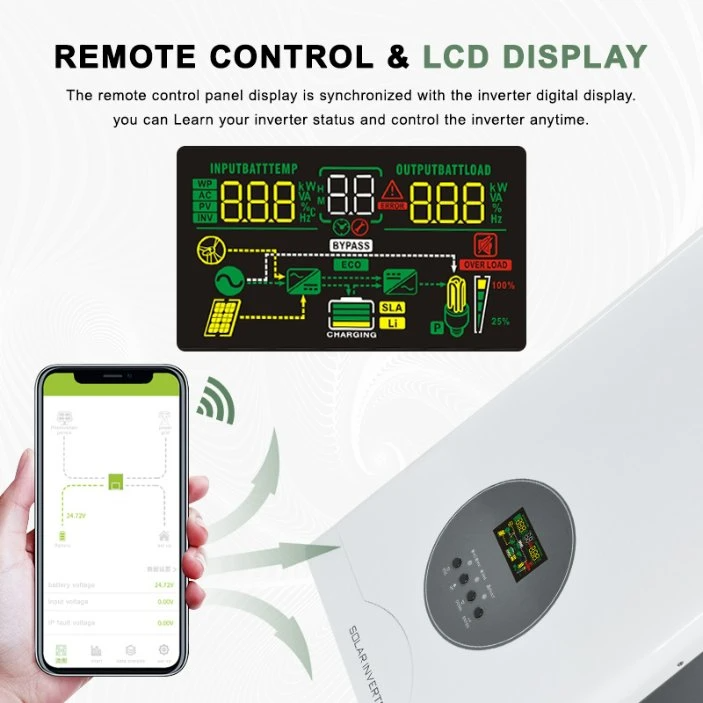

Status Display
You can vlew parameters such as Ac voltage,Ac frequency.PVvoltage,PV current, output Voltage,
output frequency,battery voltage, load current and other parameters by turning the page keys.
Voice prompt
Low battery protection buzzer long beep
Low battery buzzer beeps eVery second
Machine foult buzzer beeps
OVerlood buzzer beeps,130%,30s,150%300ms
When the overlodd is less than 130x, the buzzer will sound every second,and
the output will be turned off after 30s.When the overload is greater than
15o,the output will be turned off after 3ooms.
Operating temperature
0ºC-40ºC
Storage temperature
-15ºC-45ºC
RelatiVe temperoture
-10ºC-90ºC no condensation
Noise
<45dB

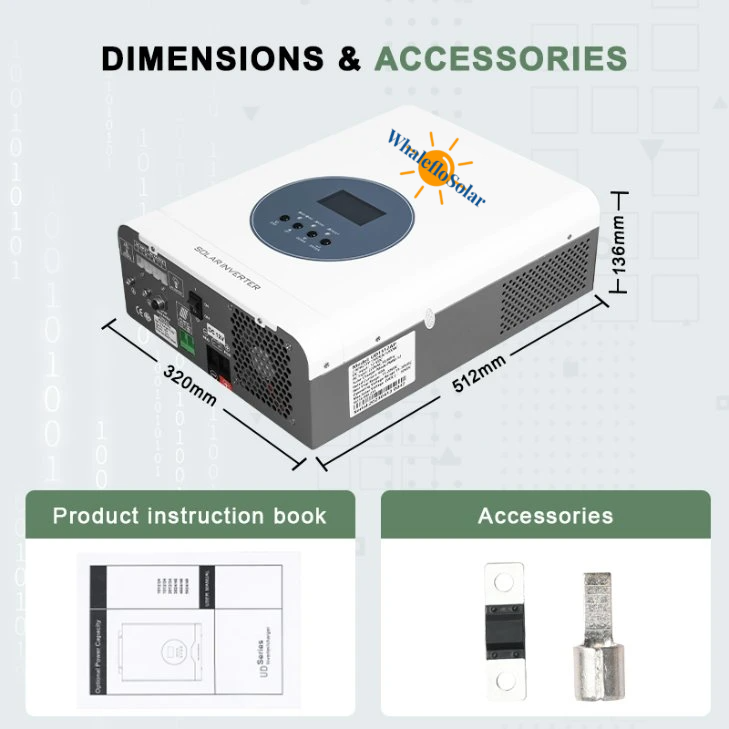

size (i*w-H)mm
325*263*123MM
512×320×136MM
