Whaleflo High Frequency 5kw 5000W Split Phase 48V Solar Energy Storage System Inverter

Ideal for Home Solar System Power Supply

  • Product Origin:

    China

  • Brand:

    Whaleflo

  • Item NO.:

    NV-GA5O48MH

  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port

  • Color:

    White

  • Payment:

    T/T,Paypal,Western Union Transfer

  • MOQ:

    100
Inquiry now

Categories

Hot Products

Products Description

Whaleflo Solar Inverter 5000W 5kw 48V DC Pure Sine Wave Solar Inverter

Whaleflo GA series Inverters Features:
Lithium Battery Auto-restart Function.More Convenient for Lithium Battery Charging
Utility Charging Voltage/PV Charging Voltage Adjustable,Match Different Battery Charging Reguirements
Battery Reverse Connection Protection with Fuse Switch,Safer Installation

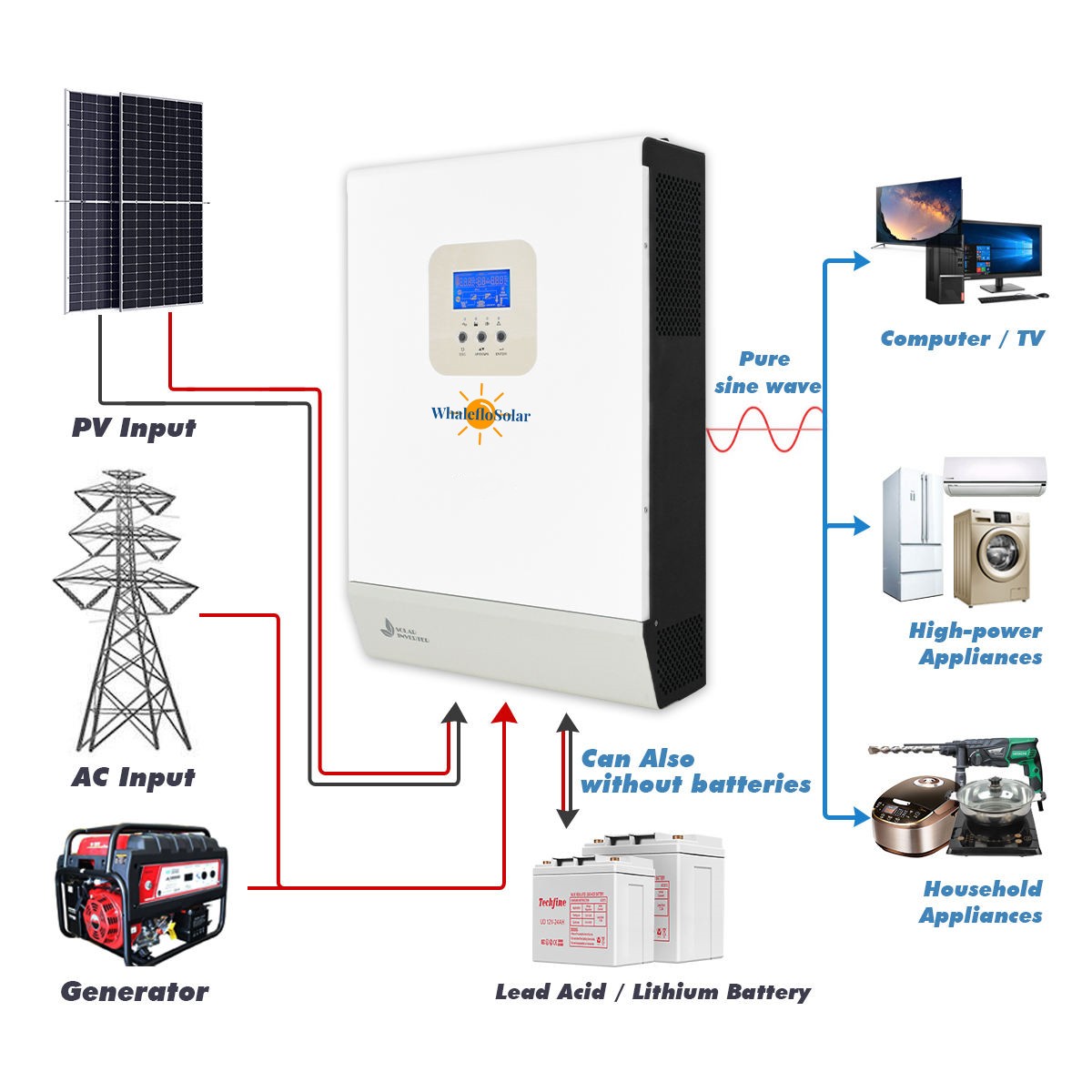

Support Working without Battery:Reduce Solar System Cost
High Precision of Output Voltage,±5%,Take Care of Your Appliances

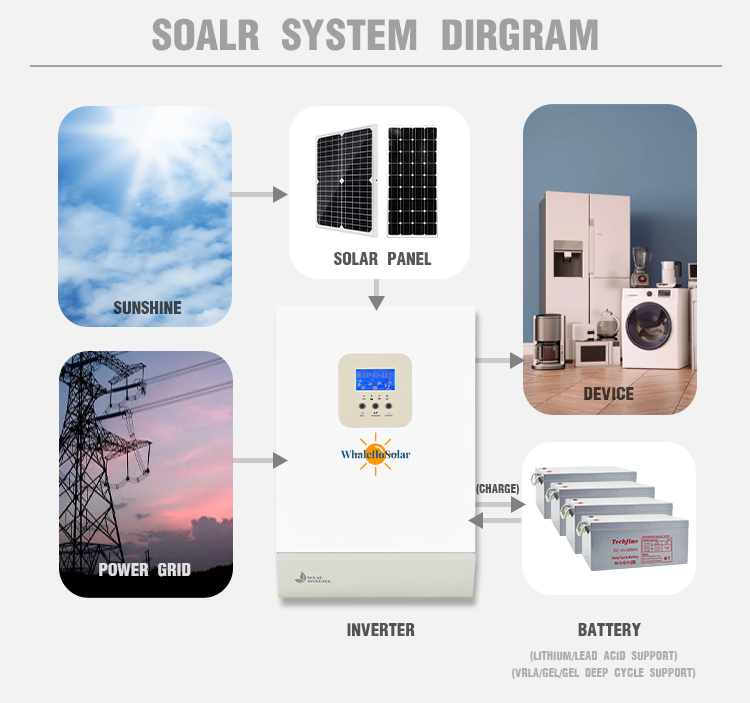

Intelligent Power Supply Mode,Intelligent Distribution of Solar Panel/Mains/Battery Power Shares
Slim Body,Convenient Installation and Transportation
PF1.0,High Efficiency,Lower Consumption.
Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
Parallel Function Up to Maximum 9 units:Enlarge More Loads
Communication Option:External WIFI,Supervise at Any Time




Product Parameters
GA series High frequency inverter data sheet
Model
GA3024ML
GA3024MH
GA5048MH
Input
Phase
L+N+PE
Nominal Voltage
208/220/230/240VAC
Voltage Range
154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode）
Frequency Range
50Hz/60Hz(Adaptive)
Output
Rated Power
3000W
3000W
5000W
Output Voltage(AC)
208/220/230/240VAC±5%
Output Frequency
50/60Hz±0.1%
Waveform
Pure sine wave
Transfer Time( Optional)
10ms for computer , 20ms for home appliances
Peak power
6000VA
6000VA
10000VA
Overload
Battery Mode：
1min@102%~110% Load
10s@110%~130% Load
3s@130%~150% Load
200ms@>150% Load
Peak efficiency (battery mode)
>94%
>94%
>94%
Battery
Rated voltage
24Vdc
24Vdc
48Vdc
Constant voltage charging voltage (Optional)
28.2Vdc
28.2Vdc
56.4Vdc
Floating charge voltage (Optional)
27Vdc
27Vdc
54Vdc
charger
PV charging method
MPPT
MPPT
MPPT
PV max input power
1500W
3500W
5500W
MPPT tracking range
30~115Vdc
120~430Vdc
120~430Vdc
Max PV input voltage
145Vdc
450Vdc
450Vdc
Max PV charging current
60A
60A
80A
Max AC charging current
60A
60A
80A
Max charging current
120A
60A
80A
Display
LCD display
Operating mode/load/input/output, etc.
Communication port
RS232
5PIN/Pitch2.0mm, baud rate 2400
Expansion & configuration port
2×5PIN/Pitch2.54mm, lithium battery BMS communication card,
WIFI card, dry contact card, etc.
Parallel interface
No
Yes
Environmental parameters
Operating environment temperature
0~40℃
Operating environment humidity
20%~95%（Non condensing）
Storage temperature
-15~60℃
Altitude
The altitude should not exceed 1000m, derating above 1000m,
up to 4000m, refer to IEC62040
Noise
≤50db
Certifications
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
