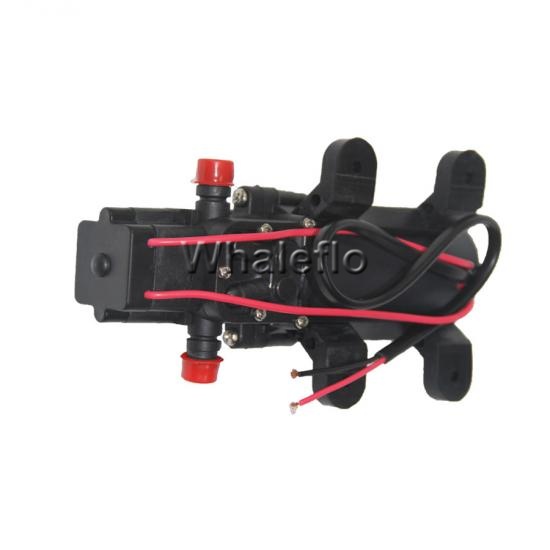

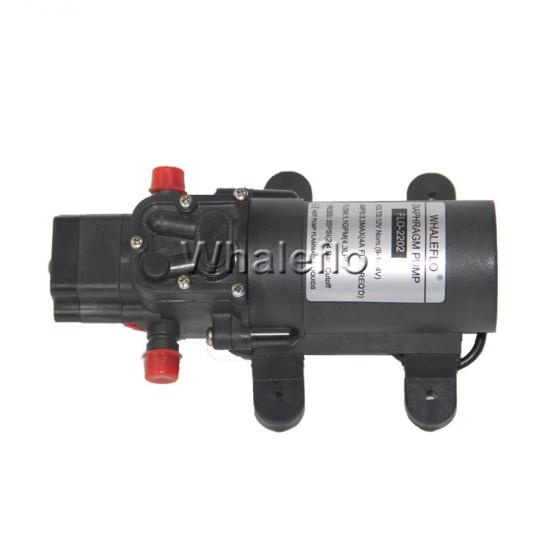

Whaleflo DC 12V 2LPM Small Diaphragm Pressure Water Pump 3.8Bar 0.5GPM
Whaleflo FLO22 series is ideal water dispensing for agriculture sprayer, marine RV,Lawn and outdoor. The Pump designed basing on two diaphragm. Each of them has self-priming with head about 1 Meter.
Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
Whaleflo automatic pump pressure switch serves from 35PSi to 80PSI,and outlet port size is 3/8” (10mm)hose barb,female thread with 1/4’’BSPT(6mm) and male thread can match different requirement.
Pump duty working: working intermittent. Pump working power: battery, Sunshine energy via Solar panel.
SPECIFICATIONS
24 volt
1.5 amp power draw
3.8 litres per minute maximum flow
35 PSI pressure
2 metre head and 80cm draw
0.64kg weight
3/8" inlet and outlet
16.5cm x 10cm x 6.5cm dimensions
Camping Shower Pump Performance
Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
These water pumps automatically turn themselves on and off when you turn the tap on and off, and are for intermittent use.
Can be used wherever you are, (e.g. at home, in a caravan, camper trailer or down at the shed). Ideal 12v pump wherever you just have a sink. Perfect for using as a camp shower or bucket shower, to wash the car or your pet.
| Model | Volt(V) | Open Flow(LPM/GPM) | Demend Pressure(PSI/Bar) | Amps Draw(A) | Check value | Diaphragm | Ports | Wire connections |
| FLO2201 | 12 | 2(0.52) | 55(3.79) | 1.8 | EPDM/VITON | Santoprene | 3/8" barb | 2-pin /Leads |
| FLO2202 | 12 | 3.8(1.0) | 35(2.41) | 3 | EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2202-1 | 12 | 4.3(1.13) | 35(2.41) | 3.5 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2203 | 12 | 2.6(0.68) | 70(4.83) | 2.1 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2203-1 | 12 | 3.1(0.82) | 70(4.83) | 2.2 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2202A | 12 | 4(1.05) | 80(5.52) | 2.6 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2401 | 24 | 2(0.53) | 55(3.79) | 0.9 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2402 | 24 | 3.8(1.0) | 35(2.41) | 1.5 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2403 | 24 | 2.6(0.68) | 70(4.83) | 1 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
| FLO2402A | 24 | 4(1.05) | 80(5.5.2) | 1.3 |
EPDM/VITON |
Santoprene |
3/8" barb |
2-pin /Leads |
|
Dimension/PC |
18.5*11*6.5cm |
|
Net Weight/pc |
0.64KG |
|
Gross Weight/pc |
0.72kG |
|
Carton Dimension(50pcs) |
56.5*38.5*36.5cm |
