Whaleflo 12V DC Caravan Water Pump 40PSI 17 L/pm
Product Description
Whaleflo 12V caravan pump FL series ideal to transfer water in 12 volt environment such as in a caravan or an RV. Also used to run a toilet or shower and has the pressure used for a boat deck wash. Automatically turns on and off when you turn the tap on and off.

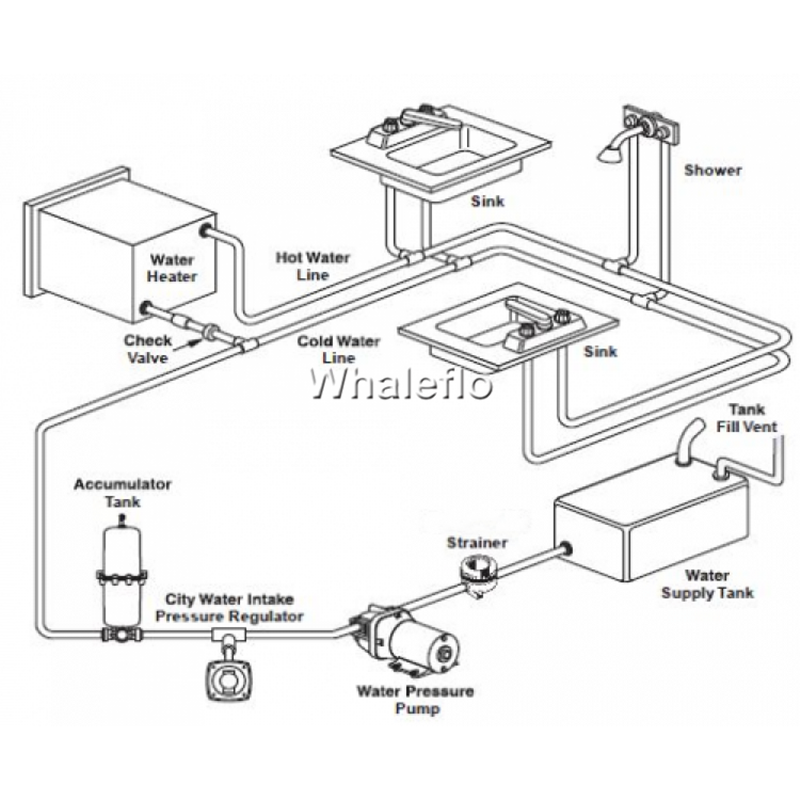

Best used with an accumulator tank.
FL series pump has four diaphragm pump.Whaleflo 12v fresh caravan water pump pressure vary from 17-60PSI, Flow from 10-17LPM.
Whaleflo 12v caravan pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
DP pump with 1/2’’(12mm) hose barb,3/4’’ male thread and 3/4’’ female thread.
Pump working duty: working intermittent
Performance
High flow, self-priming, Dry run with damage , Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
caravan,RV,marine, garden,camping,boat, outdoor
Technical Data
|
Model |
Volt（V)） |
Open Flow（LPM/GPM） |
Demand Pressure( PSI/Bar) |
Amps Draw( A) |
Check value |
Diaphragm |
Ports |
Wire connection |
|
FL30 |
12 |
10(2.6) |
17(1.17) |
2.2 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL31 |
24 |
10(2.6) |
17(1.17) |
1.5 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL35 |
12 |
12.5(3.3) |
35(2.41) |
7 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL34 |
24 |
12.5(3.3) |
35(2.41) |
4 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL60 |
12 |
17(4.5) |
60(4.13) |
13.2 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL44 |
24 |
17(4.5) |
40(2.76) |
5.6 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL40 |
12 |
17(4.5) |
40(2.76) |
9.2 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL33 |
115 |
12.5(3.3) |
35(2.41) |
0.8 |
EPDM/VITON |
Santoprene |
3/4” |
2-pin/lLeads |
|
FL32 |
220 |
12.5(3.3) |
35(2.41) |
0.4 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL41 |
115 |
17(4.5) |
40(2.76) |
1.5 |
EPDM/VITON |
Santoprene |
3/4" |
2-pin/Leads |
|
FL43 |
220 |
17(4.5) |
40(2.76) |
0.8 |
EPDM/VITON |
Santoprene |
3/4" |
2-pin/Leads |
|
Pump Design |
4 chamber Daiphragm |
|
Port size |
3/4''(19mm) female thread |
|
Connector |
1/2'' hose barb , 3/4'' BSPT thread |
|
Voltage |
12V, 24V ,115V,230V |
|
Check value |
EPDM or VITON |
|
Liquid temp |
140F(60C) maximum |
|
Seld-priming |
6.5 feet （ 2M）suction Lift |
