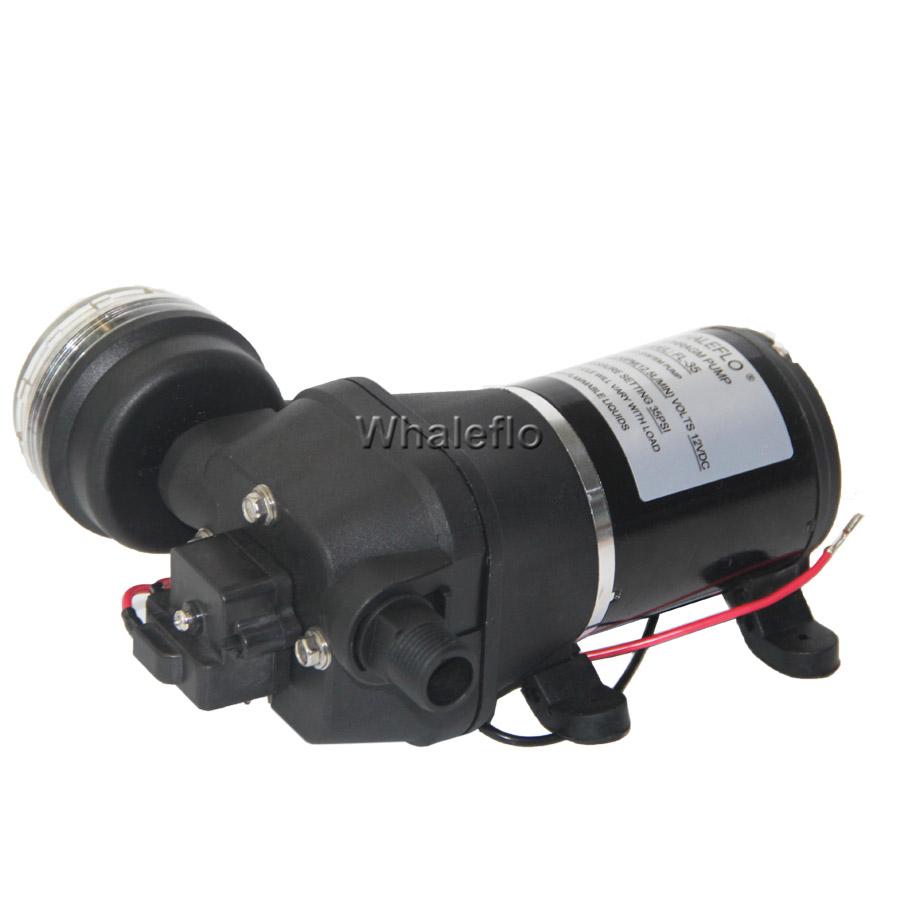

DC 12V Water Pressure 35PSI Caravan Pump 12.5 L/pm
Product Description
Whaleflo 12V caravan pump FL series is ideal water transfer in caravan,RV,marine, garden,camping,boat, outdoor and with self-priming ability. FL series pump has four diaphragm pump.Whaleflo 12v fresh caravan water pump pressure vary from 17-60PSI, Flow from 10-17LPM.
Whaleflo 12v caravan pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
DP pump with 1/2’’(12mm) hose barb,3/4’’ male thread and 3/4’’ female thread.
Pump working duty: working intermittent
Ideal for transfer water anywhere in 12 volt environments such as caravans and RV. This is the ideal pump for most 12v hot water services, it can service your shower.
Automatically opens and closes when the faucet is opened and closed. Designed for intermittent use.
Performance
High flow, self-priming, Dry run with damage , Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
caravan,RV,marine, garden,camping,boat, outdoor
Technical Data
|
Model |
Volt（V)） |
Open Flow（LPM/GPM） |
Demand Pressure( PSI/Bar) |
Amps Draw( A) |
Check value |
Diaphragm |
Ports |
Wire connection |
|
FL30 |
12 |
10(2.6) |
17(1.17) |
2.2 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL31 |
24 |
10(2.6) |
17(1.17) |
1.5 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL35 |
12 |
12.5(3.3) |
35(2.41) |
7 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL34 |
24 |
12.5(3.3) |
35(2.41) |
4 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL60 |
12 |
17(4.5) |
60(4.13) |
13.2 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL44 |
24 |
17(4.5) |
40(2.76) |
5.6 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL40 |
12 |
17(4.5) |
40(2.76) |
9.2 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL33 |
115 |
12.5(3.3) |
35(2.41) |
0.8 |
EPDM/VITON |
Santoprene |
3/4” |
2-pin/lLeads |
|
FL32 |
220 |
12.5(3.3) |
35(2.41) |
0.4 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL41 |
115 |
17(4.5) |
40(2.76) |
1.5 |
EPDM/VITON |
Santoprene |
3/4" |
2-pin/Leads |
|
FL43 |
220 |
17(4.5) |
40(2.76) |
0.8 |
EPDM/VITON |
Santoprene |
3/4" |
2-pin/Leads |
|
Pump Design |
4 chamber Daiphragm |
|
Port size |
3/4''(19mm) female thread |
|
Connector |
1/2'' hose barb , 3/4'' BSPT thread |
|
Voltage |
12V, 24V ,115V,230V |
|
Check value |
EPDM or VITON |
|
Liquid temp |
140F(60C) maximum |
|
Seld-priming |
6.5 feet （ 2M）suction Lift |
