DC 12V 2.9GPM Marine Fresh Boat Pressure Water Pump Caravan

12V RV marine fresh water pump 55PSi 12V 11.3LPM for Yacht / RV/Caravan
  • Product Origin:

    China
  • Brand:

    Whaleflo
  • Item NO.:

    WEL30-55-12
  • Shipping Port:

    Xaimen,Shanghai,Shenzhen,Ningbo
  • Lead Time:

    5-25 working days
  • Payment:

    T/T,Paypal,Western Union Transfer

Hot Products

Products Description

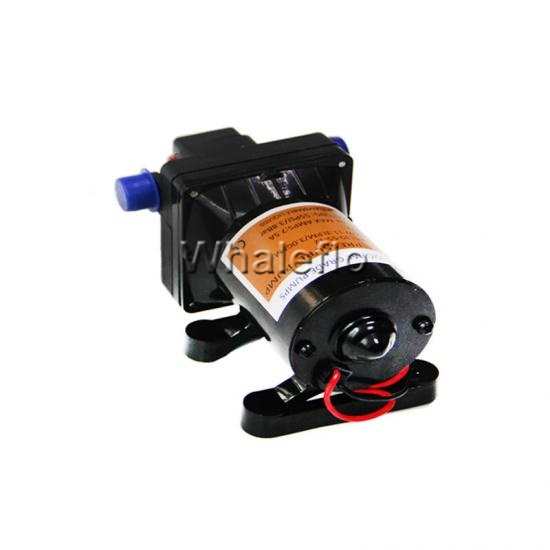

DC 12V 2.9GPM Marine Fresh Boat Pressure Water Pump Caravan

55psi 12V DC pump


Specification

Model:WEL30-55-12

Open Flow:11.3LPM/3.0GPM

Volt:12V DC

Amps:4.0a Max.Amps:7.5A

Press Setting:55PSI/3.88Bar


Package Includes:

- 1 x WEL30-55-12 Model Water Pressure Diaphragm Pump

- 1 x Installation Instructions - 2 x 1/2" Barbed Hose Adaptors

- 1 x 50 Mesh Strainer/Filter

Whaleflo 12v RV Pressure Washdown Pump
Type 4 Chamber diaphragm pump, self priming
Control Type Pressure switch & By pass control
Max Recommended Temperature 60° C(140° F)
Priming Capabilities 6 feet (1.8 m) suction lift
Re-start Pressure

Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar)

Inlet/Outlet Ports QUICK ATTACH
Weight 4.3 lbs (2.0 kg)

MOTOR
Leads 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads
Duty Cycle Intermittent
Max.Amp Draw 7.5 A
Fuse 11.3 A


Application

Whaleflo 12v RV Pressure Pump Typical Applications

Agriculture/Yacht / RV/Caravan pressurized water system
* Agricultural Spraying
* General Industrial
* Automotive
* Marine/RV


Whalelfo high pressure pump application


Whaleflo pump application


Technical data

Model Volt(V) Open Flow(LPM/GPM) Demend Pressure(PSI/Bar) Amps Draw(A) Check value  Diaphragm Ports Wire connections
WEL30-55-12 12 4.6(1.2) 60(4.1) 7.5 EPDM/VITON Santoprene QUICK ATTACH 2-pin/Leads
WEL30-55-24 24 4.6(1.2) 60(4.1) 4.0 EPDM/VITON Santoprene QUICK ATTACH 2-pin/Leads
