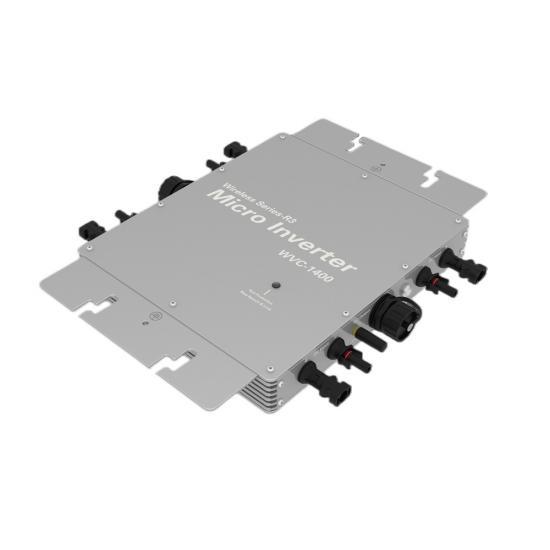

WVC Wifi Version On Grid 1200W Solar Micro Inverter
Product Introduction
WVC SERIES communication type intelligence
Micro grid-connected inverter
Maximum power point tracking
Reverse power transmission
I/O, fully isolated
No installation,no maintenance
Adaptive voltage/frequency
Internal high-precision meter
App monitoring system
Forward full-bridge topology
High quality solar micro inverter for sale, featuring 1200 watt rated and peak output power, 24V/ 48V DC to 110V/ 120V/ 230V/ 240V AC can be converted. 4*powering 375W solar panels can be used to connect the grid tie inverter. High performance micro grid tie inverter provides pure sine-wave, islanding protection, 50Hz/60Hz auto rated frequency range, aluminum magnesium alloy material, MPPT function. Useful and environmental inverter at home and in factory.
-
The solar micro inverter shell is made of high strength aluminum magnesium alloy, service life of up 25 years.
- Designed with maximum power point tracking (MPPT) which can effectively track and lock maximum power output of solar panels.
- Smart monitoring system and full digital control, providing real-time/historical data for monitoring and analyzing.
- Easy and safe installation, significantly reduce installation costs.
- Integration AC output port with pure sine wave output and both input and output are completely isolated.
-
Reverse power transmission.
- IP65 waterproof grade.
- Built-in WiFi communication
|
Model |
WVC-1400 |
|
|
Maximum input power |
4×430Watt |
|
|
Output voltage mode |
120/230V Auto Switch |
|
|
PV Open circuit voltage |
33-60Voc |
|
|
Operating voltage range |
22-60V |
|
|
Starting voltage range |
22-60V |
|
|
short-circuit current |
4*16A |
|
|
Maximum working current |
4*14A |
|
|
Output parameters |
@120V |
@230V |
|
Maximum Output Power |
1400watt |
1400watt |
|
Rated output power |
1350watt |
1350watt |
|
Output current |
11.6A |
6A |
|
AC voltage range |
85-160VAC |
180-265VAC |
| Number of branch connection | 3pcs(single) |
6pcs(single) |
|
AC frequency range |
48-51/58-61Hz |
|
|
Power factor |
>95% |
|
|
Output efficiency |
||
|
Static MPPT efficiency |
99.5% |
|
|
Max output efficiency |
95% |
|
|
Loss of power at night |
<0.5w |
|
|
Total current harmonics |
<5% |
|
|
Appearance and technical features |
||
|
Size（L×W×H)
|
370×300×41.6mm |
|
|
Net amount |
3kg |
|
|
Waterproof grade |
IP65 |
|
|
Temperature range |
-20°C to +50°C |
|
|
Heat dissipation mode |
Self-cooling |
|
|
Communication mode |
Wifi |
|
|
Power transmission mode |
Reverse transmission, Load priority |
|
|
Monitoring system |
Mobile phone APP, Browser |
|
|
Electromagnetic compatibility |
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 |
|
|
Power grid |
EN61000-3-2 EN62109.UL STD.1741 |
|
|
Power grid detection |
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A |
|
|
certificate |
Industrial Design, Patent For Invention,CE |
|
| each packing(430*375*140mm)4kg | Box(4pcs)430*400*380mm /15.5kg | |
