Food Grade AC 230V Bottled Water Dispensing System for Household Refrigerator and Coffee Machine
Description

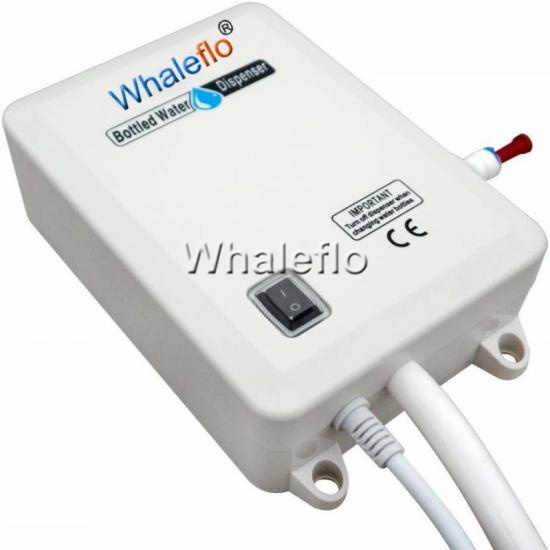

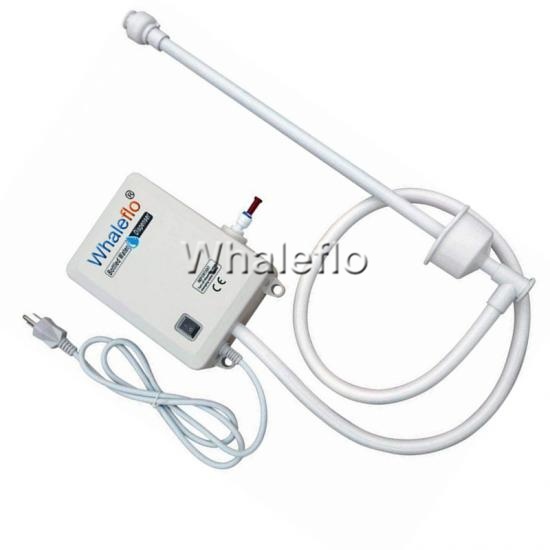

Whaleflo Bottle Water Dispensing System Design For Home And Commercial Applicances.

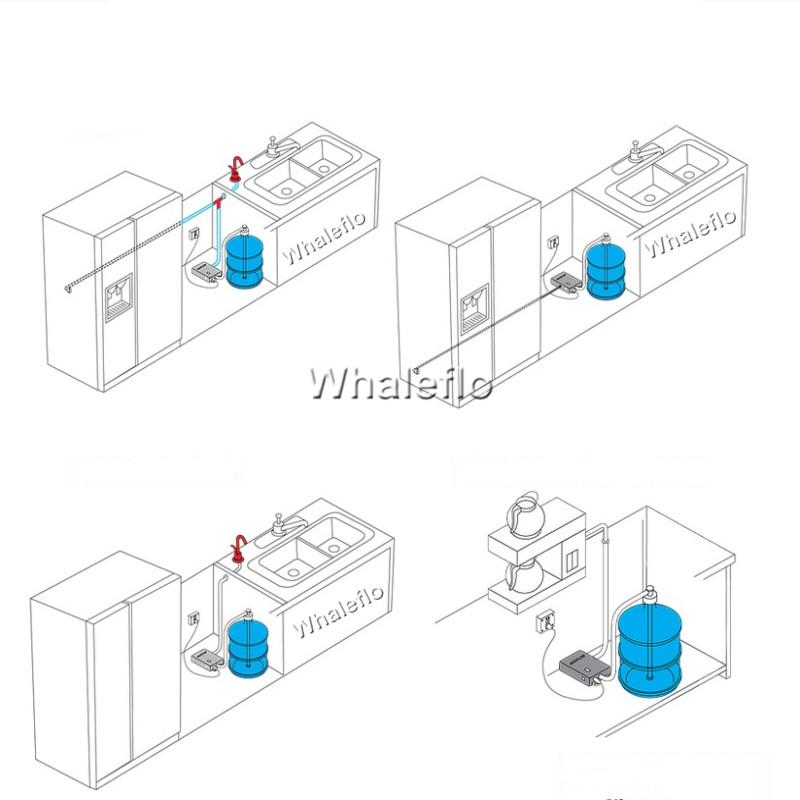

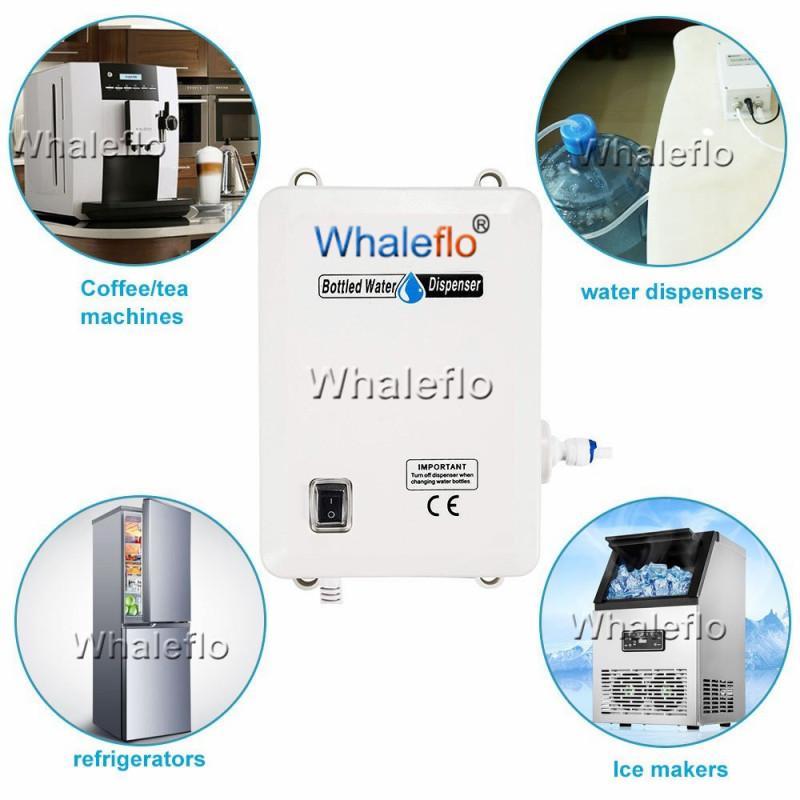

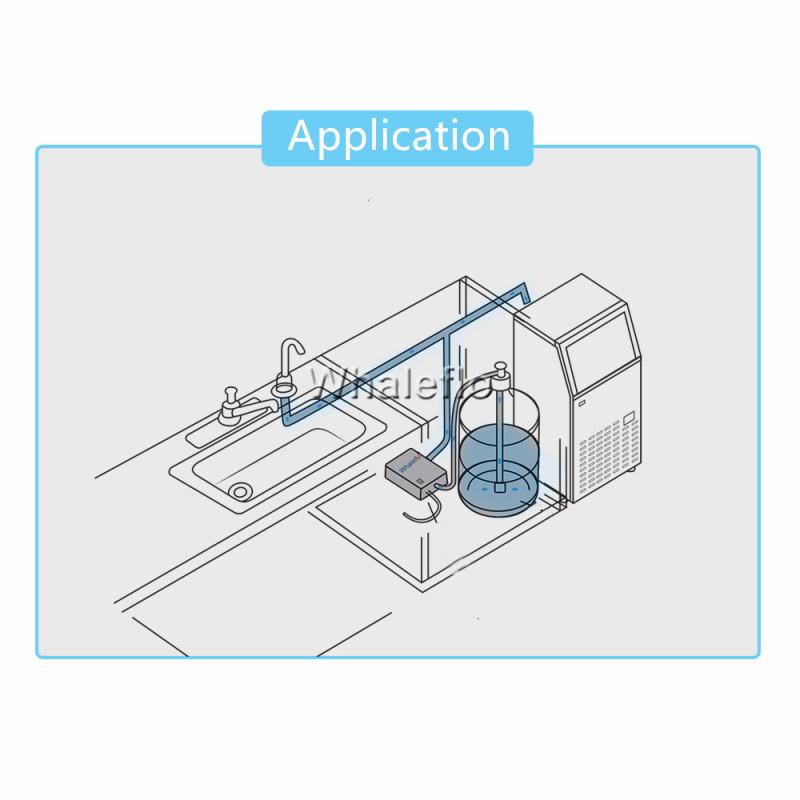

Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.
Features
Auto power off.
Low light consumption
Automatic pump operating Easy bottle change
UK/US/EU Plug optional.
Connect to your filtration kit/espresso machine easy
CE/Rohs/FDA/NSF,also with 12 months warranty.
Specification
|
Model |
GPM |
Max |
Outlet |
Tubing |
Volts |
Amps |
Cycle |
Cord |
Dimensions |
Wt |
|
BW1000A |
1.0 |
40 |
1/4" |
20' |
115 |
0.5 |
50/60 |
6' |
3.0" x 5.5" x 7.5" |
3.5 |
|
BW2000A |
1.0 |
40 |
1/4'' |
20' |
220 |
0.25 |
50/60 |
6' |
3.0" x 5.5" x 7.5" |
3.5 |
|
BW3000A |
1.0 |
40 |
1/4'' |
20' |
12 |
5 |
|
6' |
3.0" x 5.5" x 7.5" |
3.5 |
|
BW4003A |
1.0 |
40 |
1/4'' |
20' |
115-240 |
0.5 |
50/60 |
6' |
3.0" x 5.5" x 7.5" |
3.3 |
| BW2020A | 1.0 | 40 | 1/4" | 20' | 220V/115V | 0.25 | 50/60 | 6' |
3.0"x5.5"x 7.5" |
3.5 |
TROUBLESHOOTING
System Will Not Dispense Water
- Check on/off switch position
- Check power to dispensing system
- Check location of suction wand in bottle
- Check for empty bottle
- Check for air in system
Discharge Tube Leaks At Fitting
- Push tube all the way into tube stop
- Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
- Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.
System Gets Warm and Turns Off
- Check the float switch
- Check for leaks in discharge tube
- Check for leaks in tubing system
- Check for leaks at bube fittings
- Check for leaks at faucet,ice maker or refrigerator water valve
- Check pressure switch by turning faucet off and on
- Check float switch position in bottle
- Check for restriction devise at appliance inlet.
- Check for filter unit in line.
- Check for internal filters in the refrigerator
