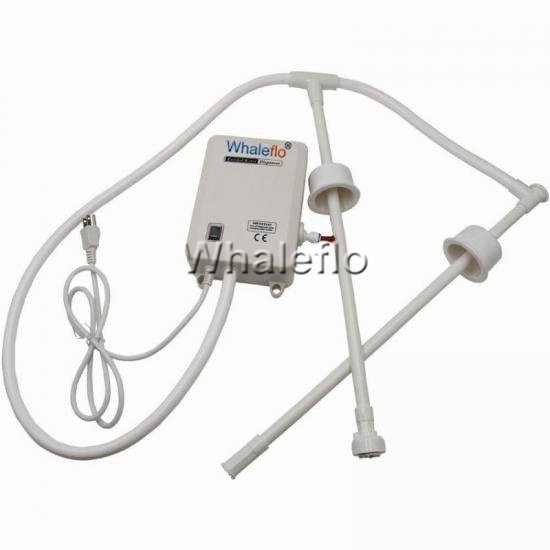

Dual Inlet AC 230V Drinking Bottled Water System UK Plug

The system delivers water under pressure to individual drinking water taps, the inlet of refrigerators for ice machines and frozen drinking water taps, and some commercial coffee/tea brewers.

  • Product Origin:

    China
  • Brand:

    Whaleflo
  • Item NO.:

    BW2020A
  • Shipping Port:

    Xaimen,Shanghai,Shenzhen,Ningbo
  • Lead Time:

    5-25 working days
  • Payment:

    T/T,Paypal,Western Union Transfer,

Hot Products

Products Description

Dual Inlet AC 230V Drinking Bottled Water System UK Plug

Description

Whaleflo Dual Inlet Bottle Water Dispensing System Design For Home And Commercial Applicances.

Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.


Features

Auto power off.

Low light consumption

Automatic pump operating Easy bottle change

UK/US/EU Plug optional.

Connect to your filtration kit/espresso machine easy

CE/Rohs/FDA/NSF,also with 12 months warranty.

Specification

Model

GPM

Max
PSI

Outlet

Tubing

Volts

Amps

Cycle

Cord

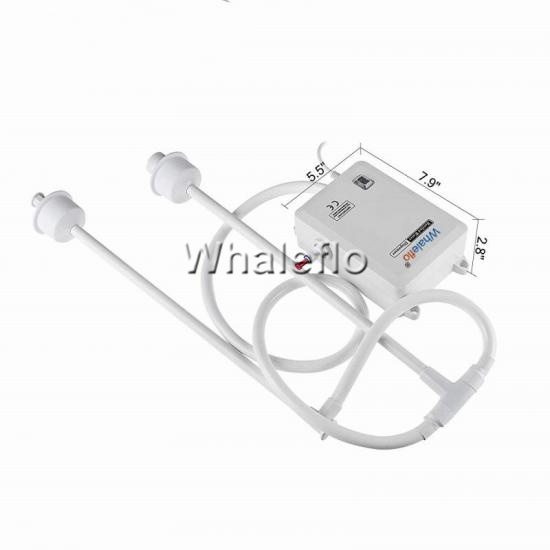

Dimensions
(H x W x D)

Wt
(kgs)

BW1000A

1.0

40

1/4"

20'

115

0.5

50/60

6'

3.0" x 5.5" x 7.5"

3.5

BW2000A

1.0

40

1/4''

20'

220

0.25

50/60

6'

3.0" x 5.5" x 7.5"

3.5

BW3000A

1.0

40

1/4''

20'

12

5



6'

3.0" x 5.5" x 7.5"

3.5

BW4003A

1.0

40

1/4''

20'

115-240

0.5

50/60

6'

3.0" x 5.5" x 7.5"

3.3

BW2020A 1.0 40 1/4" 20' 220V/115V 0.25 50/60 6' 3.0"x5.5"x 7.5"
3.5

HOW Bottled Water Dispensing System Works

Whaleflo Bottled water pump for refrigerator Similar to Flojet Bottled Water Dispensing System was designed to pump puried waler from a  commercial 5-gallon purified water bottle. The system will deliver the water under pessure to an idvidual drinking watar faucet,the water inlet of a refrigerator for the ice maker and chilled drinking water tap, and to certain commercial coffe/tea brewers.

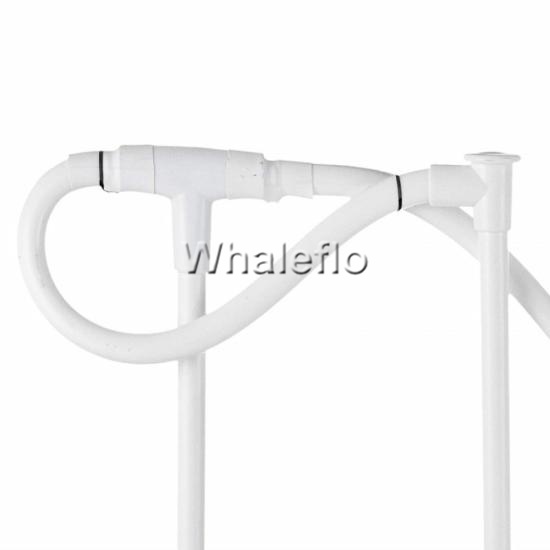

When the suction wand is inserted into the standard 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.

The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.

The system is equipped with an automatic thermal cut-off device for additional protection.



Application

whaleflo bottle water dispensing system

Convenient for water inlet of a refrigerator, coffee & Tea machine,sink etc



TROUBLESHOOTING

System Will Not Dispense Water


  • Check on/off switch position
  • Check power to dispensing system
  • Check location of suction wand in bottle
  • Check for empty bottle
  • Check for air in system

Discharge Tube Leaks At Fitting


  • Push tube all the way into tube stop
  • Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
  • Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.

System Gets Warm and Turns Off


  • Check the float switch
  • Check for leaks in discharge tube
System Will not Shut-Off



  • Check for leaks in tubing system
  • Check for leaks at bube fittings
  • Check for leaks at faucet,ice maker or refrigerator water valve
  • Check pressure switch by turning faucet off and on
  • Check float switch position in bottle
System Continually Turns Off and On While in Use



  • Check for restriction devise at appliance inlet.
  • Check for filter unit in line.
  • Check for internal filters in the refrigerator
