Residential Grid Micro Inverter 1200W For Solar Power System

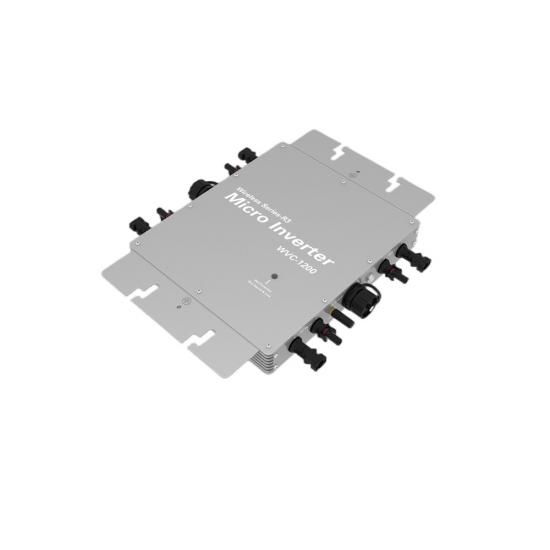

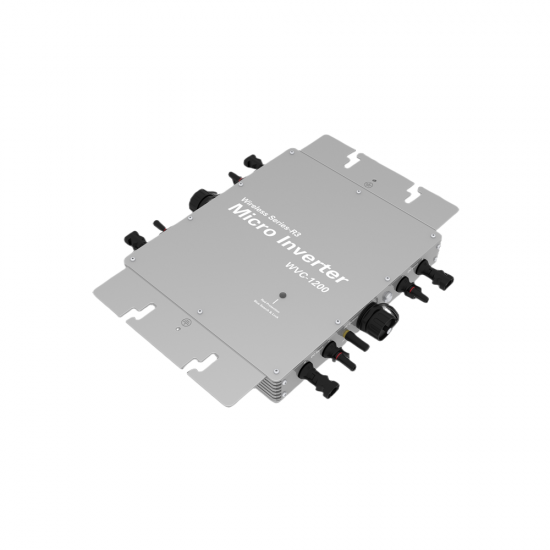

Whaleflo WVC-1200W grid-tied inverter 1200W
Grid-tie Inverter System.
A solar micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single solar module to alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to multiple solar modules or panels of the PV system.
Microinverters have several advantages over conventional inverters.
1. Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not disproportionately reduce the output of the entire array.
2. Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3. Simplicity in system design, lower amperage wires, simplified stock management and added safety are other factors introduced with the microinverter solution.
WVC-1200W (wifi version) whaleflo solar Grid tie power inverter 1200W using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT) Functions, Better able to track changes in the solar luminosity and control the different output power, Effectively capture and collect sunlight. AC electric power transmission using reverse transmission technology, Is one of our patented technology, The whaleflo wvc microinverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
High-performance maximum power point tracking (MPPT)
Reverse power transmission
Intelligent monitoring management
Input /output is fully isolated to protect the electrical safety
Multiple parallel stacking
Digital control system
Simplify maintenance (user serviceable)
Operation and maintenance costs low
Flexible installation
|
Model |
WVC-1200 |
|
|
Maximum input power |
4×375Watt |
|
|
Output voltage mode |
120/230V Auto Switch |
|
|
PV Open circuit voltage |
33-60Voc |
|
|
Operating voltage range |
22-60V |
|
|
Starting voltage range |
22-60V |
|
|
short-circuit current |
4*14A |
|
|
Maximum working current |
4*12A |
|
|
Output parameters |
@120V |
@230V |
|
Maximum Output Power |
1200watt |
1200watt |
|
Rated output power |
1150watt |
1150watt |
|
Output current |
10A |
5.22A |
|
AC voltage range |
85-160VAC |
180-265VAC |
| Number of branch connection | 3pcs(single) |
6pcs(single) |
|
AC frequency range |
48-51/58-61Hz |
|
|
Power factor |
>95% |
|
|
Output efficiency |
||
|
Static MPPT efficiency |
99.5% |
|
|
Max output efficiency |
95% |
|
|
Loss of power at night |
<0.5w |
|
|
Total current harmonics |
<5% |
|
|
Appearance and technical features |
||
|
Size（L×W×H)
|
370×300×41.6mm |
|
|
Net amount |
3kg |
|
|
Waterproof grade |
IP65 |
|
|
Temperature range |
-20°C to +50°C |
|
|
Heat dissipation mode |
Self-cooling |
|
|

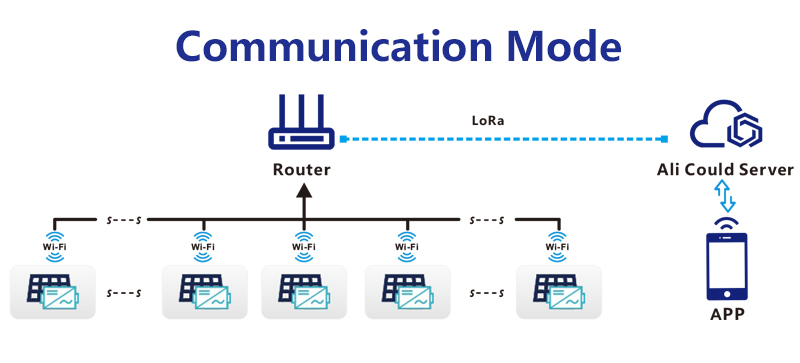

Communication mode |
Wifi |
|
|
Power transmission mode |
Reverse transmission, Load priority |
|
|
Monitoring system |
Mobile phone APP, Browser |
|
|
Electromagnetic compatibility |
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 |
|
|
Power grid |
EN61000-3-2 EN62109.UL STD.1741 |
|
|
Power grid detection |
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A |
|
|
certificate |
Industrial Design, Patent For Invention,CE |
|
| each packing(430*375*140mm)4kg | Box(4pcs)430*400*380mm /15.5kg | |
