Whaleflo Battery Selector Switch for Boat RV 6V 12V 24V 32V Power Supply System
Whaleflo Battery Selectory Switch Description
Max. Amp: 300A
Switch Position: 4
Voltage: 6V, 12V, 24V, 32V
CE Certified
N.W/GW: 0.45*0.65kg

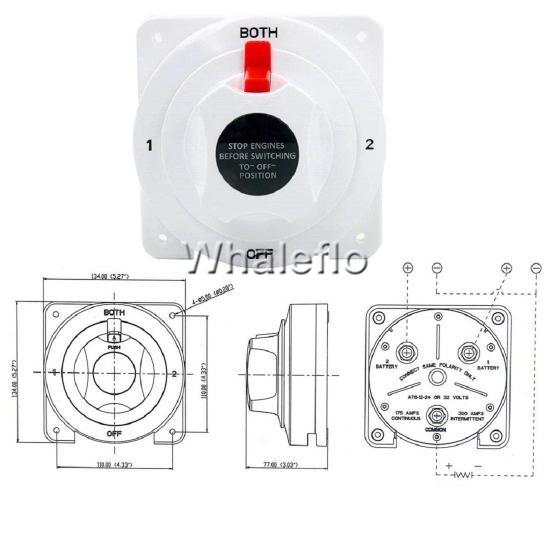

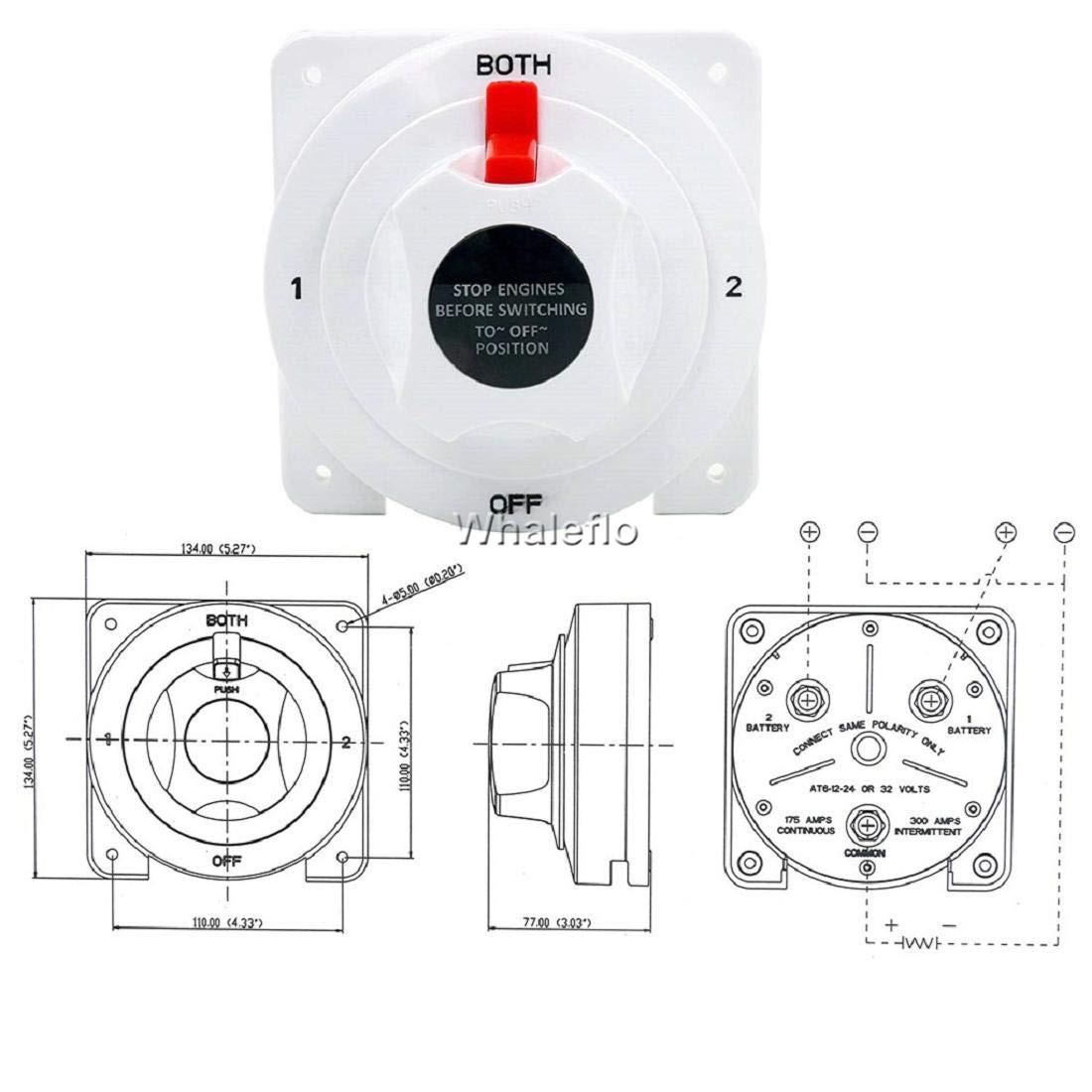

Dimension: 5.27" (Length) X 3.03" (Height) X 5.27" (Width)
Features & Benefits
Thermoplastic ABS housing, durable and sturdy.
Small in size, Fine appearance.
Ignition and corrosion protected bronze steel shaft.
Large range of Bronze screws for battery connection.
Can be installed in any position.

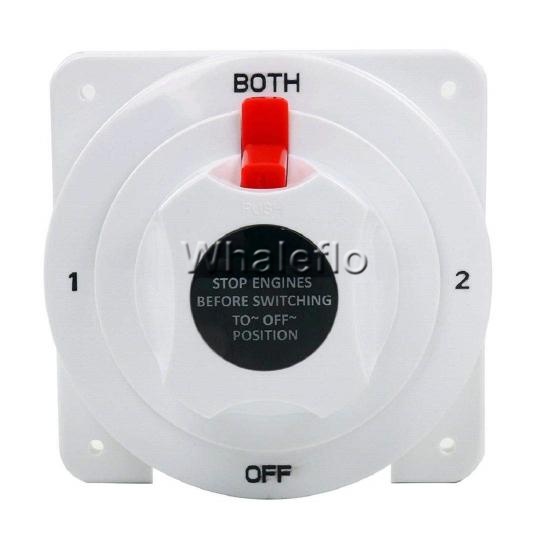

4 Positions: 1 - 2- Both - Off
The selector switch will allow the use of one battery for engine starting
and one battery for auxiliary electrical equipment.
Batteries may be placed in parallel by switching to (BOTH) for emergency usage
Small in size, Fine appearance, Sturdy and durable
Can be installed in any position
175A continuous duty at DC-12V
300A intermittent duty at DC-12V
Suitable for 6V, 12V, 24V and 32V ship's supply system
OFF - Complete disconnect of both batteries or banks of batteries
1- Operation of No.1 battery only
2- Operation of No.2 battery only
BOTH- Operation of both batteries and banks of batteries
Typical Applications
Marine
RV & Campers
Industrial
Max.Volt (V):6-12-24-32
Amp Draw (A):175
Max Amp Draw (A):300
Switch Position:3
Packing Size:140x140x85 mm
N.W/GW:0.45*0.65 kg
Battery Selector Switch Features:
1.allowing the use of one battery for engine starting and one battery for auxiliary electrical equipment
2.Small in size, fine appearance, sturdy and durable
3.Resistance can be installed in any position
4.300A intermittent duty at DC-12V
5.Can be placed in parallel by switching to (BOTH) for emergency usage

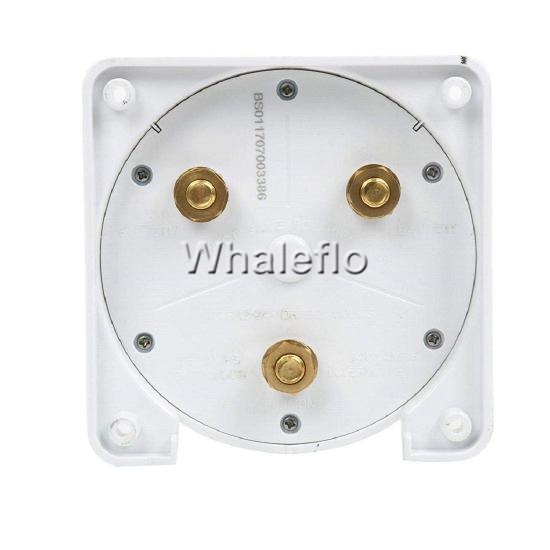

-6.3/8"-16 tin-plated copper studs for maximum conductivity and corrosion
7.175 A continuous duty at DC-12V
8.Suitable for 6V, 12V, 24V and 32V ship's supply system
