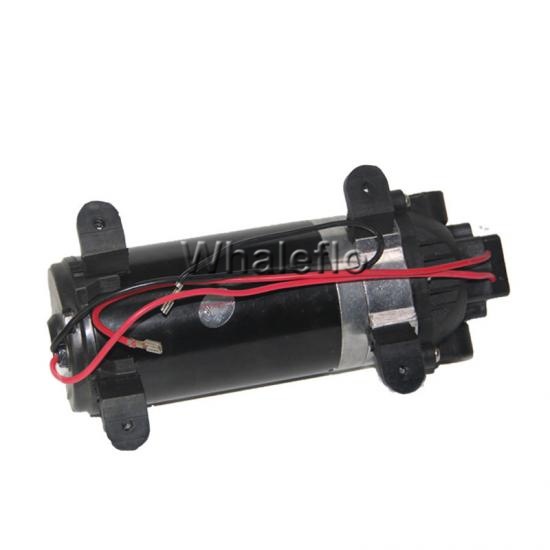

Whaleflo 24V DC 1.5GPM 120psi Diaphragm Pressure Water Pump for Sweeper Agriculture Sprayer
Whaleflo DP high pressure wash pump, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer,fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from60PSi-160PSi with self-priming ability.
DC pressure wash pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from4-11PH value.

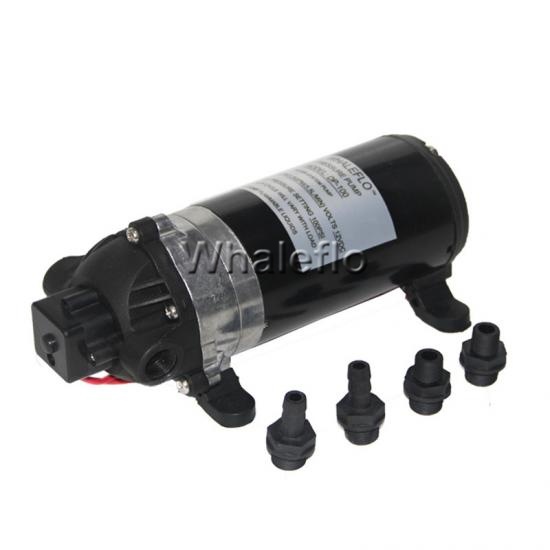

DP pump with3/8’’(10mm) hose barb,1/4’’ male thread and 3/8’’ female thread.
Pump working duty: working intermittent
Shaft made ofStainless steelwith Best heavy duty manufacturer
Pump pressure vary from 60PSi to 160PSIcontrolled by Bypass& pressure switch
Anti airlock designmake motor with long life span and tight sealed well
superior rubberfeet with low noise.
Pump detail install size drawing & manual are available
Mini& Flexible,light weight
Performance
Whaleflo 12V DC Diaphragm Pump with High pressure ,Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment
Technical data
| Model | Volt(V） | Open Flow（LPM/GPM） | Demend Pressure（PSI/Bar） | Amps Draw(A) | Check value | Diaphragm | Ports | Wire connections |
| DP60 | 12 | 4.6(1.2) | 60(4.1) | 7 | EPDM/VITON | Santoprene | 3/8'' | 2-pin/Leads |
| DP60B | 24 |
4.6(1.2) |
60(4.1) | 4 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP80 | 12 | 5.5（1.5） | 80（5.5） | 8 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP100 | 12 | 5.5（1.5） | 100（7.0） | 9 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP120 | 12 | 5.5(1.5) | 120(8.3) | 9.5 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP120B | 24 | 5.5(1.5) | 120(8.3) | 4.5 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP160 | 12v | 5.5(1.5) | 160(11) | 10.5 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160B | 24 | 5.5(1.5) | 160(11) | 4.2 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP100M | 220 | 5.5(1.5) | 100(7.0) | 0.6 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP120M | 220 | 5.5(1.5) | 120(8.3) | 0.5 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160M | 220 | 5.5(1.5) | 160(11) | 0.6 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160S | 115 | 5.5(1.5) | 160(11) | 1 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure Switch | 1 |
| 2 | Diaphragm of pressure switch | 1 |
| 3 | Pump Head | 1 |
| 4 | Diaphragm | 1 |
| 5 | Rubber feet | 1 |
| 6 | Iron Base Plate | 1 |
| 7 | Motor | 1 |
