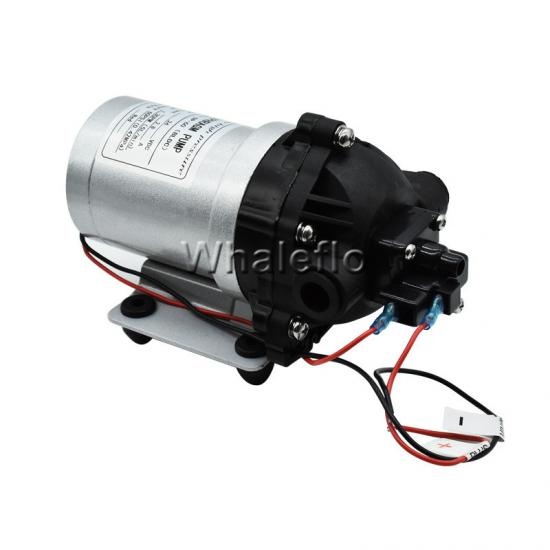

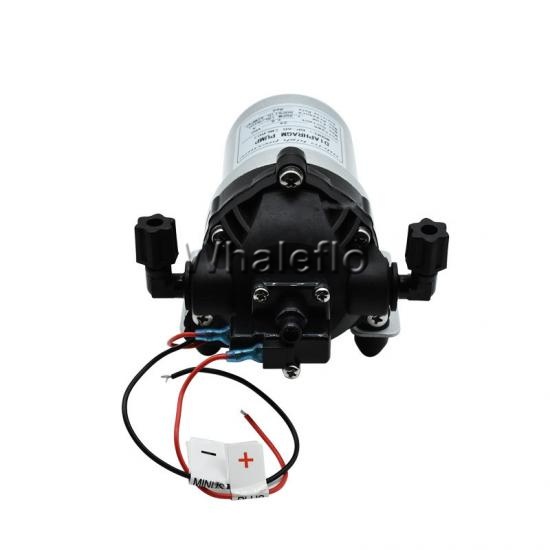

Whaleflo 12V Dc 60PSI 5LPM Brushless High Pressure Diaphragm Water Pump
whaleflo brushless 12V high pressure car wash pump
Whaleflo DP series with high pressure, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from 60PSi-160PSi with self-priming ability.
Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
DP pump with 3/8’’(10mm) hose barb,1/4’’ male thread and 3/8’’ female thread.
Pump working duty: working intermittent
Shaft made of Stainless steel with Best heavy duty manufacturer
Pump pressure vary from 60PSi to 160PSI controlled by Bypass& pressure switch
Anti airlock design make motor with long life span and tight sealed well
superior rubber feet with low noise.
Pump detail install size drawing & manual are available
Mini& Flexible,light weight
Whaleflo 12V Dc diaphragm pump performance
High pressure ,Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Whaleflo Pump application
carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transferApplications:
*Car Flushing
*Reverse Osmosis Water Purification System
*Filter
*Spray Equipment
*General Industrial Equipment
*Chemical Metering
*Hygienic, Pollution Control
DP60 BLDC
MAX FLOW: 5L/MIN
MAX PRESURE:60PSI/0.42MPA
SPEED:1200R/MIN
(12V/24V/220V)POWER:40W
brushless 12V POWER:20W
brushless 24V POWER:28W
DP60 with pressure switch
The pressure switch plays a protective role, that is, when the pump pressure reaches the upper limit (0.42MPA), it automatically shuts down and resumes after the pressure is relieved.
Technical data
