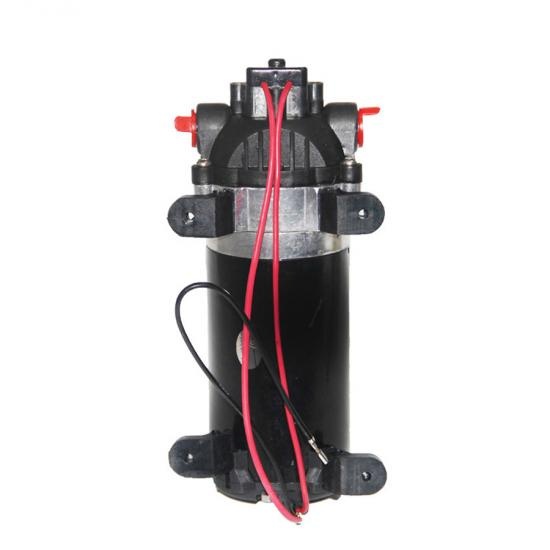

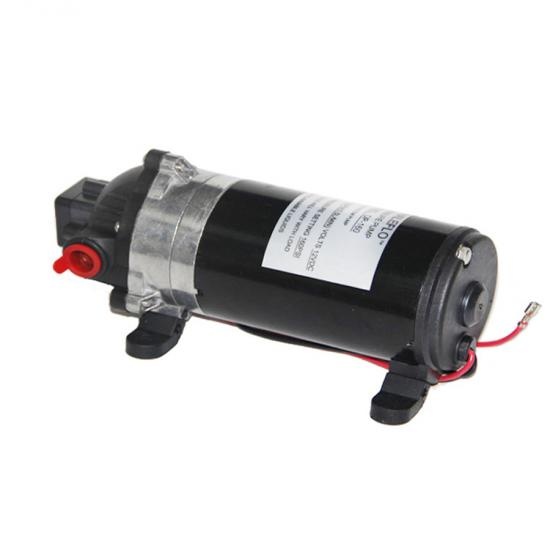

12V Dc Diaphragm high pressure car wash pump for carpet/Sprayer
12V high pressure car wash pump
Whaleflo DP series with high pressure, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from 60PSi-160PSi with self-priming ability.
Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
DP pump with 3/8’’(10mm) hose barb,1/4’’ male thread and 3/8’’ female thread.
Pump working duty: working intermittent
Shaft made of Stainless steel with Best heavy duty manufacturer
Pump pressure vary from 60PSi to 160PSI controlled by Bypass& pressure switch
Anti airlock design make motor with long life span and tight sealed well
superior rubber feet with low noise.
Pump detail install size drawing & manual are available
Mini& Flexible,light weight
Whaleflo 12V Dc diaphragm pump performance
High pressure ,Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Whaleflo Pump application
carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Technical data
Model
Volt(V）
Open Flow（LPM/GPM）
Demend Pressure（PSI/Bar）
Amps Draw(A)
Check value
Diaphragm
Ports
Wire connections
DP60
12
4.6(1.2)
60(4.1)
7
EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP60B
24
4.6(1.2)
60(4.1)
4
EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP80
12
5.5（1.5）
80（5.5）
8
EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP100
12
5.5（1.5）
100（7.0）
9
EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP120
12
5.5(1.5)
120(8.3)
9.5
EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP120B
24
5.5(1.5)
120(8.3)
4.5
EPDM/VITON
Santoprene
3/8''
2-pin/Leads
DP160
12v
5.5(1.5)
160(11)
10.5
Santoprene
3/8''
2-pin/Leads
DP160B
24
5.5(1.5)
160(11)
4.2
Santoprene
3/8''
2-pin/Leads
DP100M
220
5.5(1.5)
100(7.0)
0.6
Santoprene
3/8''
2-pin/Leads
DP120M
220
5.5(1.5)
120(8.3)
0.5
Santoprene
3/8''
2-pin/Leads
DP160M
220
5.5(1.5)
160(11)
0.6
Santoprene
3/8''
2-pin/Leads
DP160S
115
5.5(1.5)
160(11)
1
Santoprene
3/8''
2-pin/Leads
