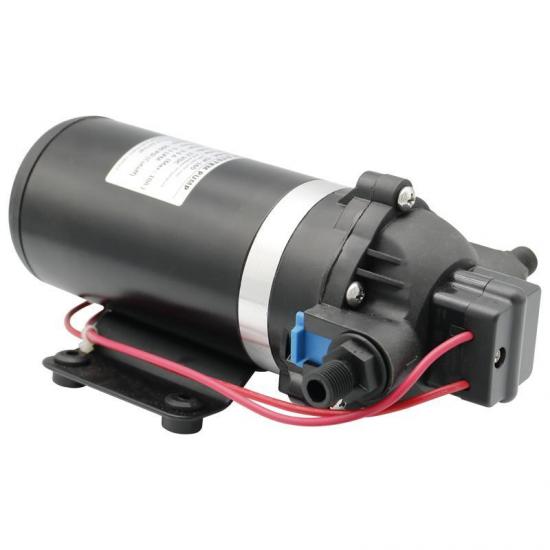

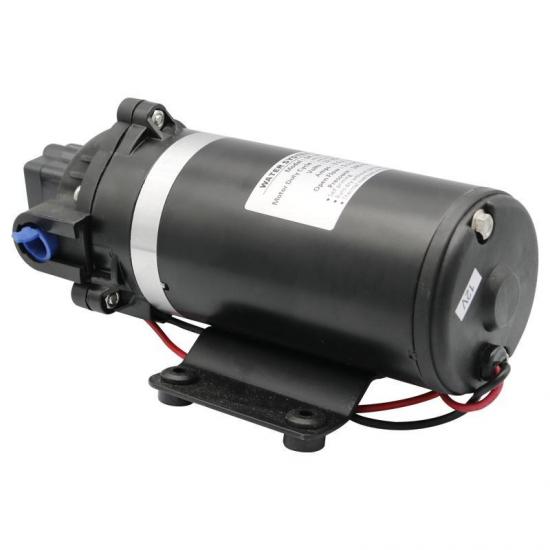

Whaleflo 24V 160PSI High Pressure Diaphragm Agricultural Water Pump
Elevate your agricultural spraying tasks with the Whaleflo 24V 160PSI High Pressure Diaphragm Agricultural Water Pump. This powerful and dependable electric water transfer pump is designed to meet the demanding needs of modern farming.
With a pressure rating of 160 PSI (equivalent to 11 bars), this pump provides the force required for precise and efficient spraying. Whether you're tending to crops, orchards, or gardens, the Whaleflo pump ensures even coverage and effective distribution of fertilizers, pesticides, and herbicides.
The 24V diaphragm design guarantees a consistent flow of water, minimizing the risk of clogs or uneven spraying, while the high-pressure performance allows you to reach even the tallest crops with ease. The pump is versatile, making it suitable for a wide range of applications in agriculture.
Installing and using this pump is a breeze, thanks to its user-friendly design. Its compact and robust construction ensures durability and longevity, even in challenging environmental conditions. The pump is engineered to be energy-efficient, minimizing power consumption and maximizing performance.
Invest in the Whaleflo 24V 160PSI High Pressure Diaphragm Agricultural Water Pump for a hassle-free and productive farming experience. Whether you're a professional farmer or a hobbyist gardener, this pump will be your trusted partner in achieving outstanding results in your agricultural endeavors.
Performance
Whaleflo 12V DC Diaphragm Pump with High pressure ,Self-priming ability. Can run dry short time without damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment
Technical data
| Model | Volt(V） | Open Flow（LPM/GPM） | Demend Pressure（PSI/Bar） | Amps Draw(A) | Check value | Diaphragm | Ports | Wire connections |
| DP60 | 12 | 4.6(1.2) | 60(4.1) | 7 | EPDM/VITON | Santoprene | 3/8'' | 2-pin/Leads |
| DP60B | 24 |
4.6(1.2) |
60(4.1) | 4 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP80 | 12 | 5.5（1.5） | 80（5.5） | 8 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP100 | 12 | 5.5（1.5） | 100（7.0） | 9 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP120 | 12 | 5.5(1.5) | 120(8.3) | 9.5 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP120B | 24 | 5.5(1.5) | 120(8.3) | 4.5 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP160 | 12v | 5.5(1.5) | 160(11) | 10.5 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160B | 24 | 5.5(1.5) | 160(11) | 4.2 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP100M | 220 | 5.5(1.5) | 100(7.0) | 0.6 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP120M | 220 | 5.5(1.5) | 120(8.3) | 0.5 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160M | 220 | 5.5(1.5) | 160(11) | 0.6 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160S | 115 | 5.5(1.5) | 160(11) | 1 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure Switch | 1 |
| 2 | Diaphragm of pressure switch | 1 |
| 3 | Pump Head | 1 |
| 4 | Diaphragm | 1 |
| 5 | Rubber feet | 1 |
| 6 | Iron Base Plate | 1 |
| 7 | Motor | 1 |
