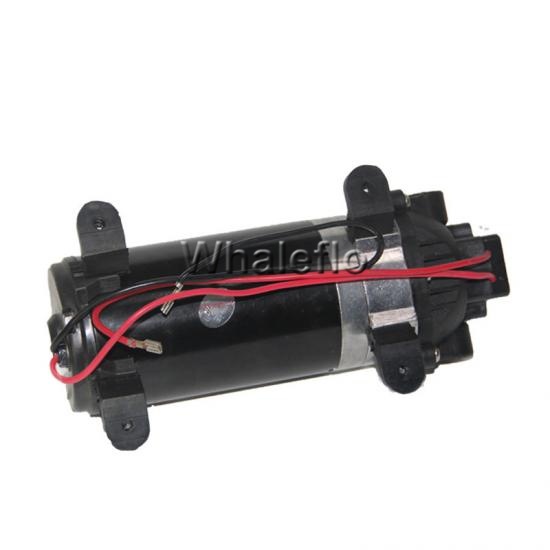

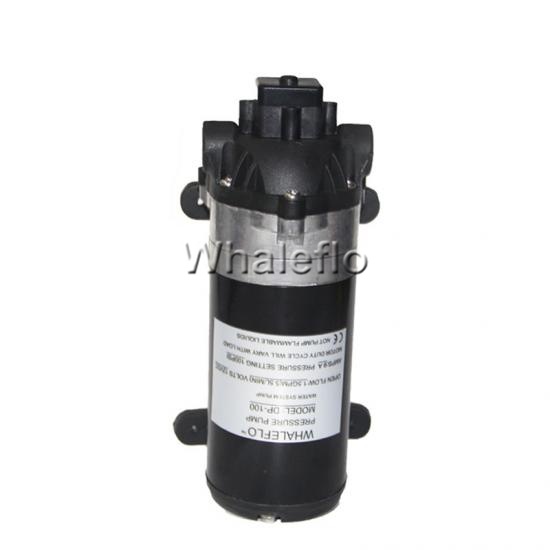

DC 12V 24V 160PSI High Pressure 11Bar Diaphragm Agricultural Spraying Water Pump
Whaleflo DP high pressure wash pump, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer,fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from60PSi-160PSi with self-priming ability.
DC pressure wash pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from4-11PH value.
DP pump with3/8’’(10mm) hose barb,1/4’’ male thread and 3/8’’ female thread.
Pump working duty: working intermittent
Shaft made ofStainless steelwith Best heavy duty manufacturer
Pump pressure vary from 60PSi to 160PSIcontrolled by Bypass& pressure switch
Anti airlock designmake motor with long life span and tight sealed well
superior rubberfeet with low noise.
Pump detail install size drawing & manual are available
Mini& Flexible,light weight
Performance
Whaleflo 12V DC Diaphragm Pump with High pressure ,Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment
Technical data
| Model | Volt(V） | Open Flow（LPM/GPM） | Demend Pressure（PSI/Bar） | Amps Draw(A) | Check value | Diaphragm | Ports | Wire connections |
| DP60 | 12 | 4.6(1.2) | 60(4.1) | 7 | EPDM/VITON | Santoprene | 3/8'' | 2-pin/Leads |
| DP60B | 24 |
4.6(1.2) |
60(4.1) | 4 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP80 | 12 | 5.5（1.5） | 80（5.5） | 8 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP100 | 12 | 5.5（1.5） | 100（7.0） | 9 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP120 | 12 | 5.5(1.5) | 120(8.3) | 9.5 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP120B | 24 | 5.5(1.5) | 120(8.3) | 4.5 |
EPDM/VITON |
Santoprene |
3/8'' |
2-pin/Leads |
| DP160 | 12v | 5.5(1.5) | 160(11) | 10.5 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160B | 24 | 5.5(1.5) | 160(11) | 4.2 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP100M | 220 | 5.5(1.5) | 100(7.0) | 0.6 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP120M | 220 | 5.5(1.5) | 120(8.3) | 0.5 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160M | 220 | 5.5(1.5) | 160(11) | 0.6 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| DP160S | 115 | 5.5(1.5) | 160(11) | 1 |
|
Santoprene |
3/8'' |
2-pin/Leads |
| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| 1 | Pressure Switch | 1 |
| 2 | Diaphragm of pressure switch | 1 |
| 3 | Pump Head | 1 |
| 4 | Diaphragm | 1 |
| 5 | Rubber feet | 1 |
| 6 | Iron Base Plate | 1 |
| 7 | Motor | 1 |
