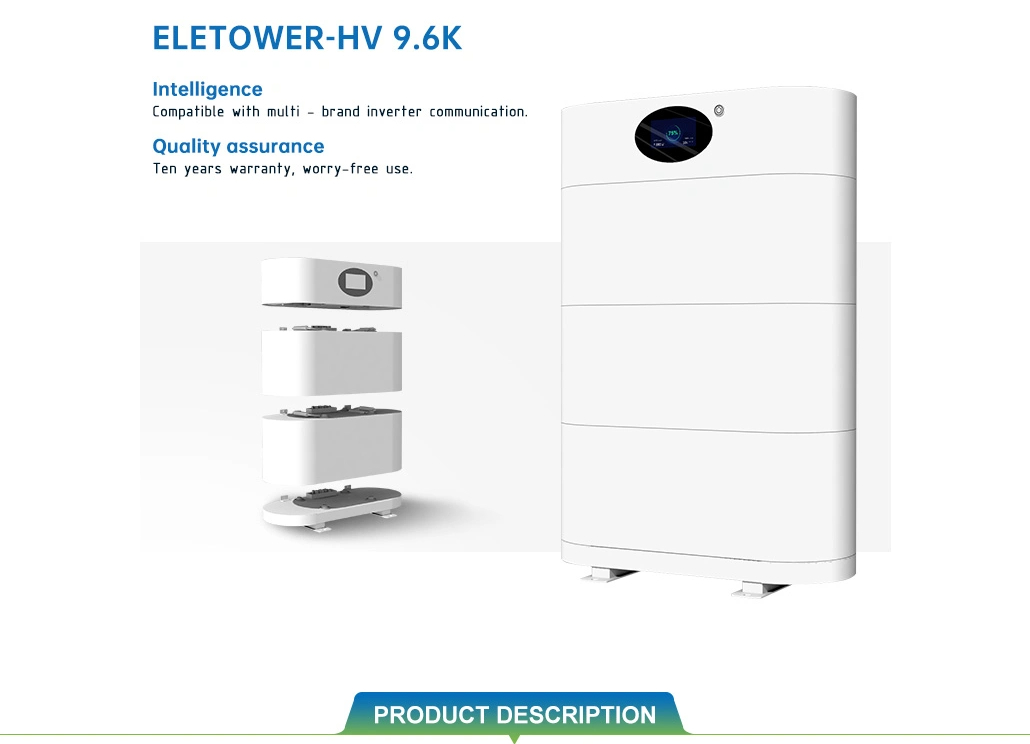

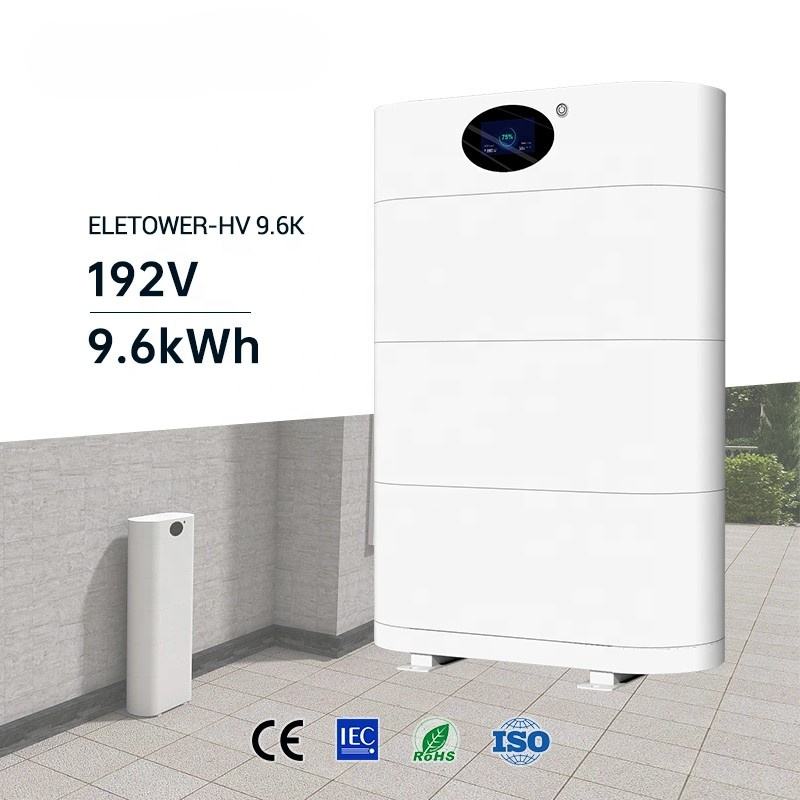

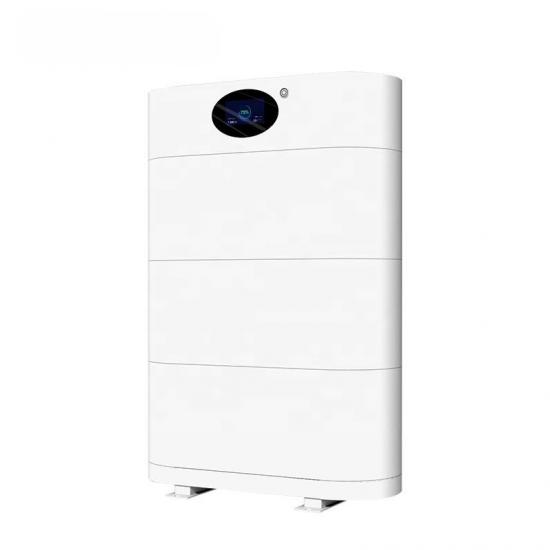

Whaleflo Solar Bettenergy ELETOWER 9.6kwh High Voltage 192V Lifepo4 Lithium For Solar System
Specification:
Nominal Energy Capacity:9600 Wh
Nominal Voltage:192 V
Dimensions (H*W*D):921 * 617 * 254mm
Cycle Life (80% DoD @25℃):≥6000
Communication Port: RS485 / CAN
Warranty:5/10 Years
|
Datesheet
|
ELETOWER 9.6
|
|
Battery Module
|
ELETOWER—3.2 (3.2kWh, 51.2V, 36kg, 617/254/233)
|
|
Number of Modules
|
3
|
|
Energy Capability
|
9.6KWh
|
|
Nominal Voltage
|
192V
|
|
Dimension mm (H/W/D)
|
921/617/254
|
|
Weight
|
142kgs
|
|
Battery Type
|
Cobalt free Lithium Iron Phosphate (LFP)
|
|
Standard Charge/Discharge Current
|
25A@0.5C
|
|
Max Charge/Discharge Current
|
50A@1C
|
|
IP Protection
|
IP65
|
|
Installation
|
Floor Installation
|
|
Operation Temperature
|
0 °C to 45°C
|
|
DOD
|
90%
|
|
Cycle Life
|
＞6000
|
|
Warranty
|
10 Years
|
|
Communication Port
|
CAN/RS485
|
|
Certification
|
CE, IEC62619, MSDS, ROHS, UN38.3
|
