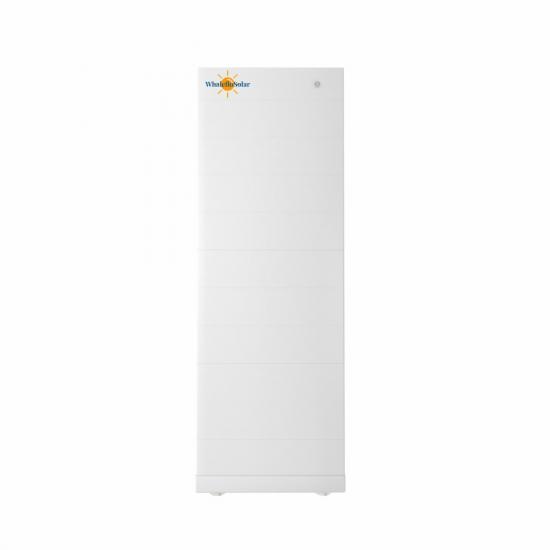

Whaleflo Energy High Voltage Lifepo4 Battery Pack Lithium Solar Battery For Solar System 25.6kWh
Modular design with advanced LiFePO4 technologies, Nine energy specifications up to 25.6kWh for your choice with parallel support available, high waterproof level and good heat sink, which offers you various capacities to meet more of your requirements.
- Flexible capability options from 5.12k to 25.6kWh
- Excellent Safety of cobalt free LifePO4 battery
- Easy installation with modular and stacked design
- Exceptional lifespan,5 years warranty
ELEBOX-HV high voltage lithium battery energy storage system, consisting of 2-10 battery modules (51.2V/50AH) and a BCU (Battery Control Unit) In series, with an operating voltage range of 96V-600V, is used for household / commercial energy storage applications, working with a high voltage inverter for energy storage purposes.
elebox-hv has a built-in BMS (battery management system,including the main BMS in BCU and the slave BMS in the battery module), which can manage and monitor battery information, including voltage, current and temperature.
In addition, BMS can balance battery charging to prolong service life. BMS has over discharge, over charge, over-current, high / low temperature and other protection functions.
The system can automatically manage the charge state, discharge state and balance state.
ELEBOX-HV have a soft-start circuit inside so it can support inverters without soft-start function.
|

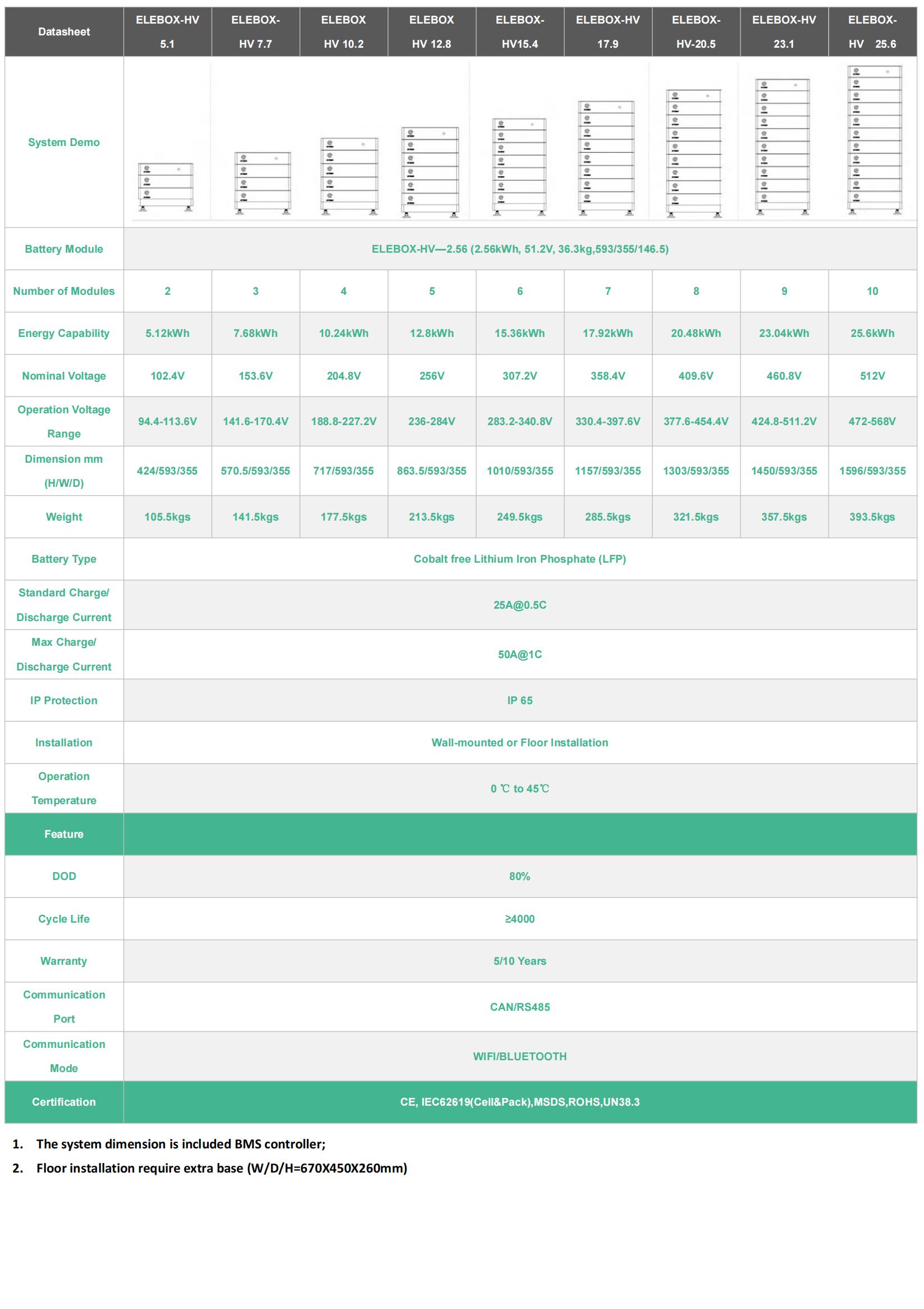

Datesheet
|
ELEBOX-HV 25.6
|
|
Battery Module
|
ELEBOX-HV—2.56 (2.56kWh, 51.2V, 34kg, 600/355/145)
|
|
Number of Modules
|
10
|
|
Energy Capability
|
25.6KWh
|
|
Nominal Voltage
|
512V
|
|
Dimension mm (H/W/D)
|
1596/593/355
|
|
Weight
|
393.5kgs
|
|
Battery Type
|
Cobalt free Lithium Iron Phosphate (LFP)
|
|
Standard Charge/Discharge Current
|
25A@0.5C
|
|
Max Charge/Discharge Current
|
50A@1C
|
|
IP Protection
|
IP65
|
|
Installation
|
Wall-mounted or Floor Installation
|
|
Operation Temperature
|
0 °C to 45°C
|
|
DOD
|
90%
|
|
Cycle Life
|
＞6000
|
|
Warranty
|
5/10 Years
|
|
Communication Port
|
CAN/RS485
|
|
Communication Mode
|
WIFI / BLUETOOTH
|
|
Certification
|
CE, IEC62619, MSDS, ROHS, UN38.3
|
