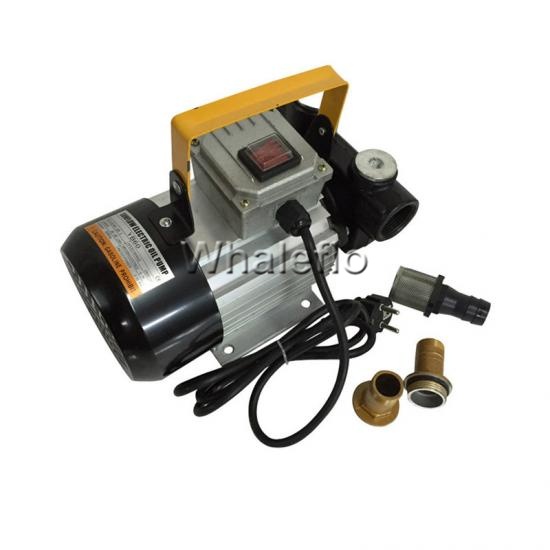

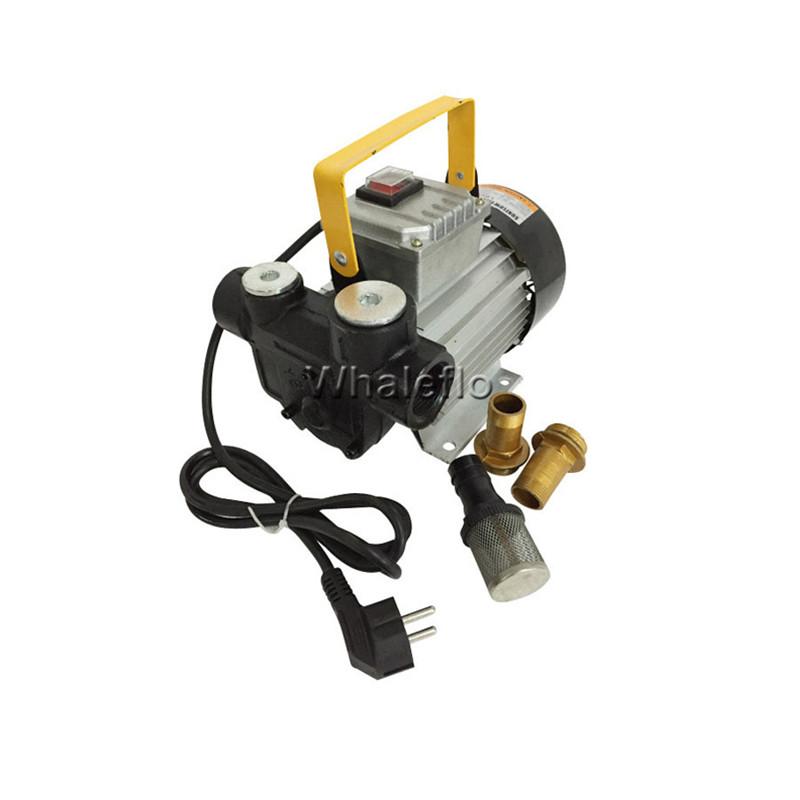

Whaleflo Self Priming AC 110V 220V Portable Electric Diesel Pump 60Lpm
Descritption
|
Product name
|
Car Electric oil transfer Pump * single suction
|
||
|
Voltage
|
AC 220V ±10%50Hz
AC 110V±10% 60Hz
|
||
|
OEM
|
Acceptable
|
||
|
By pass valve
|
Yes
|
||
|
Power
|
550W
|
||
|
Max Suction
|
5m
|
||
|
Type
|
vane pump self priming
|
||
|
Weight
|
8.5Kg
|
||
|
Flow
|
20~60L/min
|
||
|
Strainer
|
Yes
|
||
This high efficient self-priming oil extractor pump is an ideal equipment for quick and clean oil-changes,
1. Oil extractor pump with 550W for effective and powerful operation.
2. Ideal equipment for quick and clean oil-changes.
3. Simple On/Off Power Switch, easy to use. You can often do it by yourself to ensure your engine runssmoothly.
4. Easy to install.no specialized tools needed.
5.Impeller suction single suction.More powerful.
6. Ideal for industrial,boat, vans, cars, quads and other Vehicles, fit to use with diesel, kerosene, suitable
for extracting oil, diesel

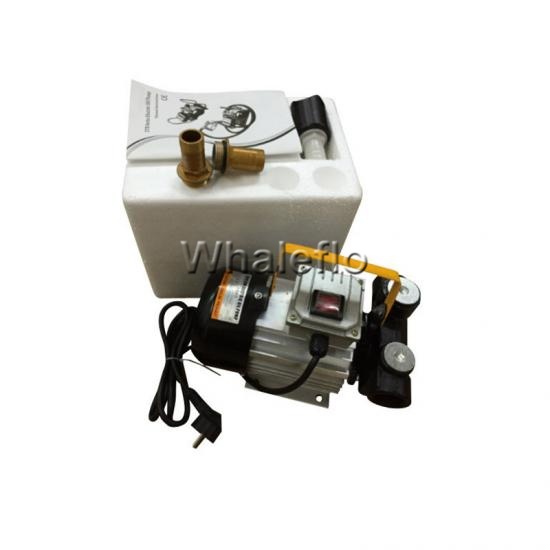

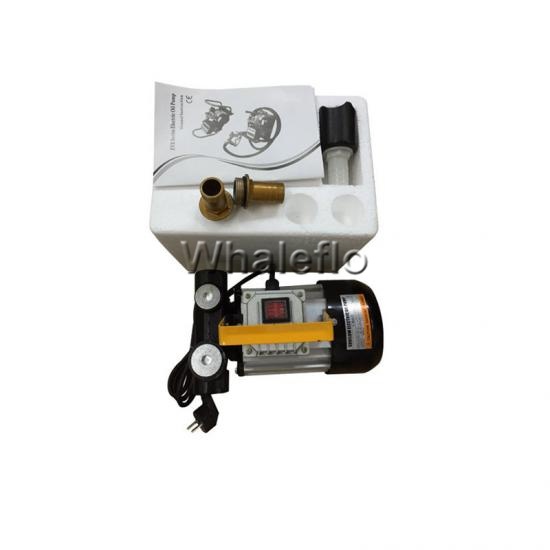

Package :
2Pcs/cartonSize:450*330*240
1 Pcs size:220*310 *220
AC 220V/240V fuel dispenser pump
1. For fueling diesel oil, kerosene, not for gasoline. Heavy fuel oil transfer pump
2. Cast iron casing, rotary vane pump, steel rotor.
3. Bypass valve built in.
4. Built in filter, easily accessible for cleaning.
5. Self priming: Yes
6. Induction motor with aluminum casing, IP54
7. Continuous working principle
8. Applicable in transferring oil from barrels, fueling machines in construction sites, boat, agriculture.
Inlet&out Size: 1"
Flow Rate: 60L/min
Power: 550W
Speed: 2800rpm
Voltage: 220V, 110V
Suction: 5m
Head: 5-10m
Grade of protection : IP54
| Specification | |
| Voltage | AC220V 50HZ (±10%) |
| Rated Power | 0.74HP/550W |
| Speed Range | 2800rpm |
| Max pressure | 3 bar |
| Pump flow rate | 20-60 L/min |
| inlet/outlet port fitting | 1" copper |
| Relief valve | Yes |
| Inlet filter | copper |
| Avoiding back flow | Yes |
| Packing info. | |
| Overall View Size: | 45x32x26cm |
| G.W./N.W: | 9.2/9kgs |
| Packing | 2pcs/ctn |
| Outer Carton | 26x64x45cm |
| G.W./N.W: | 19/18kgs |
Ideal for fueling diesel and kerosene.

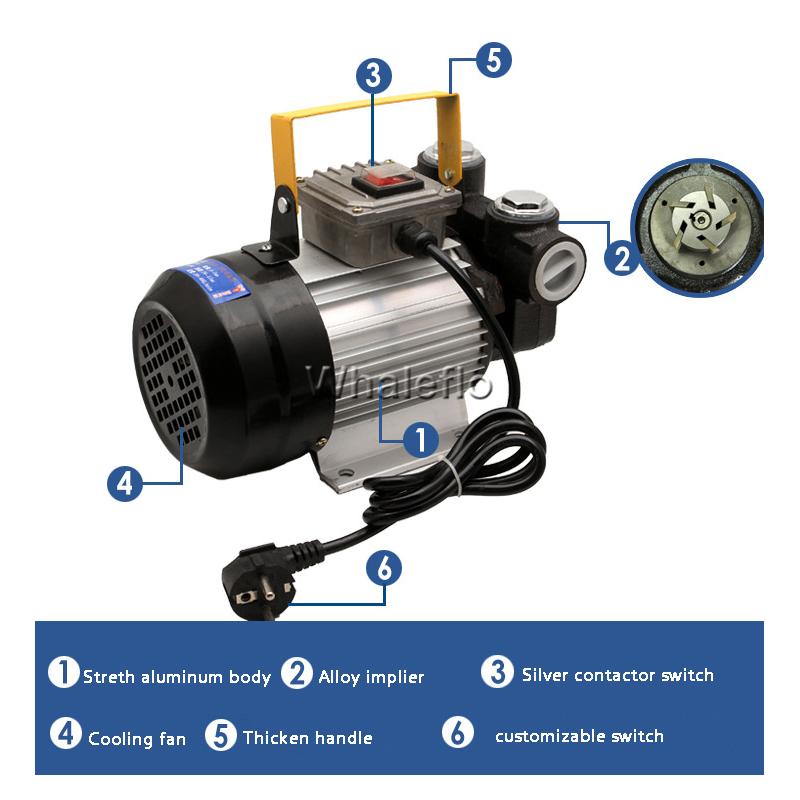

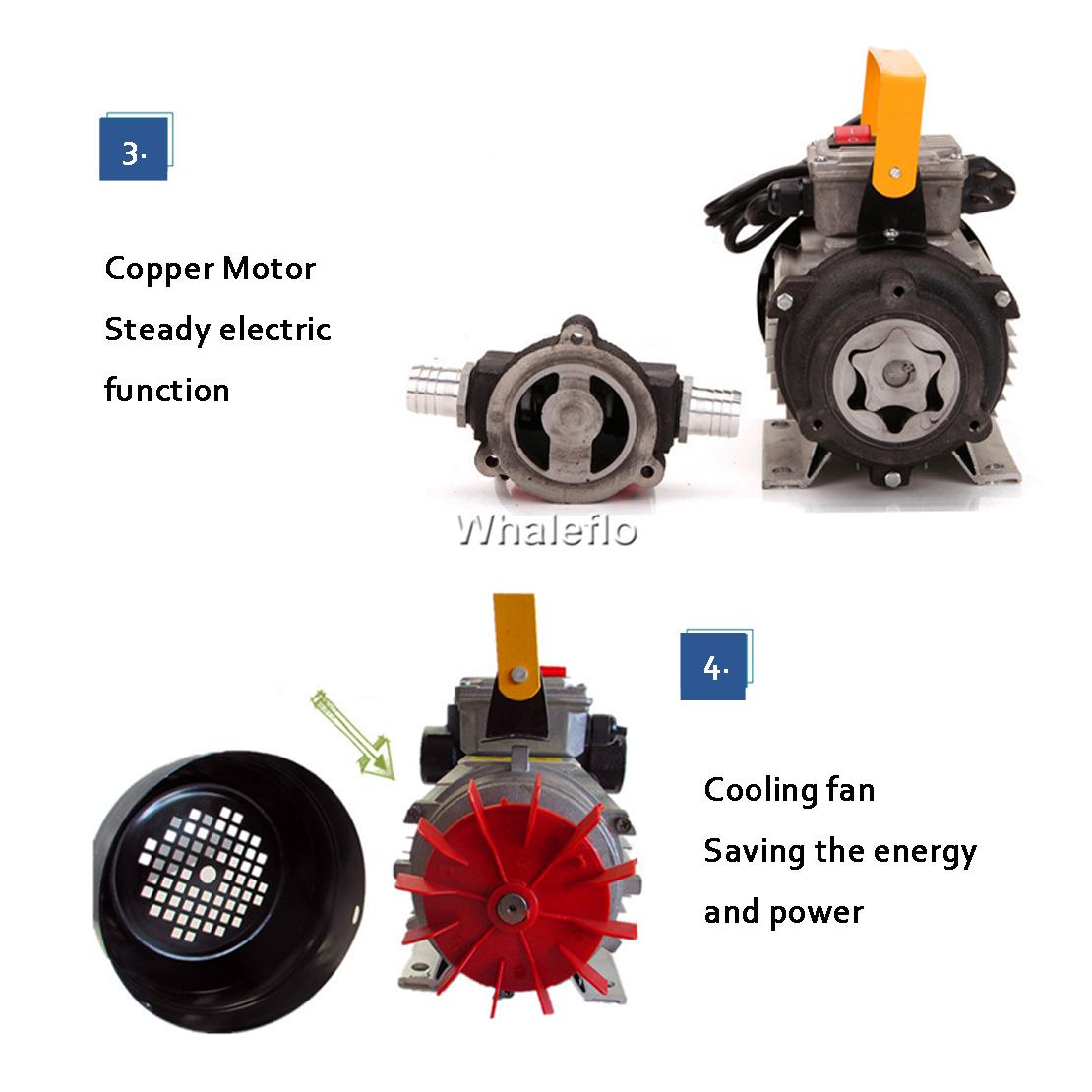

The heavy duty motor drives the wearproof vane.
Cast iron pump head, with resistant-corrosion paint. Die-casting aluminum pump body
The 220Volt diesel pump has passed strict heat resistance and earthquake resistance test.
The protection grade reached to IP-55.
Be allowed to continuous work for hours.
Relief valve inside the pump head will efficiently protect
Product introduction:
This self-priming pump only for pumping Diesel or Kerosene,do not pump low ignition oil like Gasoline, Liquefied Petroleum Gas or Alcohol as well as high viscous oil like Engine Oil.
Technical Parameters:
|
Model |
JYB40 |
YB60 |
YB80 |
|
Flow Rate |
(20-40)L/min |
(20-60)L/min |
(50-80)L/min |
|
Rated Voltage |
AC220V |
AC 220V or 110V |
AC 220V or 110V |
|
Power |
120W |
375W |
550W |
|
Pressure |
0.16-0.18Mpa; 1.6-1.8bar; |
0.18-0.20Mpa; 1.8-2.0bar; |
|
|
Suction Lift |
3m |
3-5m |
|
|
Head Lift |
6m |
5-10m |
|
|
In-out |
In BSPT3/4", |
In BSPT1", Out BSPT1" |
|
Note:
1. The filter must be cleaned regularly.
2. The pumping fuel's ignition should not exceed 55 ºC.
3. Do not empty spin.
