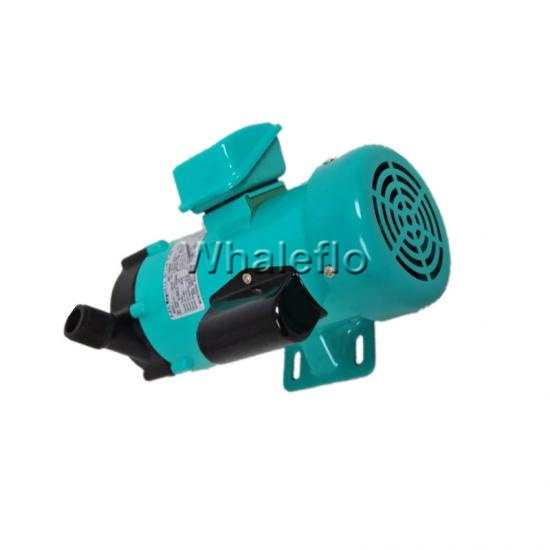

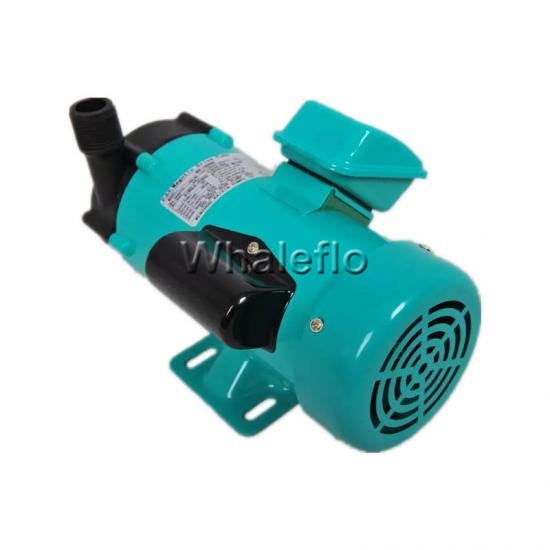

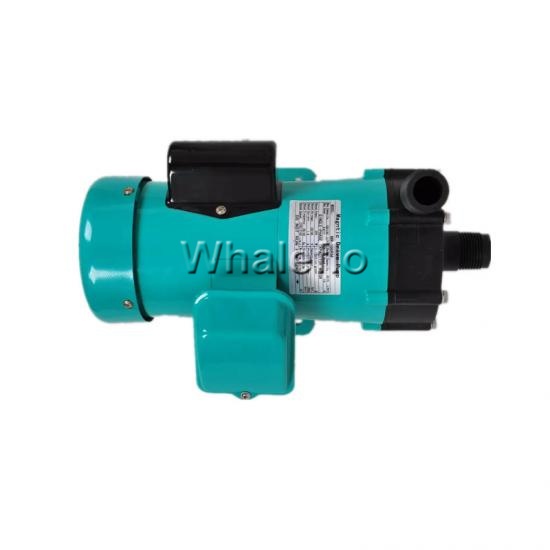

Whaleflo MP-100RM Acid Resistant Magnetic Drive Centrifugal Pump

Whaleflo MP-100RM Acid Resistant Magnetic Drive Centrifugal Pump

Specifications:

Model Number: MP-100RM
Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Power: Electric
Standard or Nonstandard: Standard
Outlet:1"
Max. Capacity: 120L/min (50Hz); 130L/min(60Hz)
Max. Head: 8.6M(50Hz); 11.6M(60Hz)
Standard Capacity: 60L/min (50Hz); 70L/min(60Hz)
Standard Head: 7M(50Hz); 9M(60Hz)
Specific Gravity: <1.3
Motor Output: 250W

• Magnetic Drive pumps are ideal for salt water aquariums and live fish holding tanks.
• Circulation of water for healthy pond, create wow factor with a water feature or run a fish or hydroponics without the large electricity bill.
• Anti-corrosion design, has an excellent performance to endure the corrosion from salt or sea water Liquid and also suitable for food industry.

• Design without axle sleeve, liquid passing through is sealed well without leakage;
• Extraordinary high lift and large flow;
• Anti-corrosion design, extensively used for industrial and aquariums- Ideal for salt water;
• Heavy duty, durable and reliable;
• In-line use only;
• Thermal Overload Protection for the motor;
• True Magnetic-drive pumps are completely sealed and do not have shaft seals to wear out.
• Only a single casing O-ring is used and prevents the liquid from leaking.
• It is manufactured using the latest engineering plastics to prevent corrosion.
• The permanently split capacitor start (PSC) motors are totally enclosed fan cooled ( TEFC).
• Continuously rated and Class E insulation,
• Thermal overload protection and suitable for indoor use.

Whaleflomagnetic pump parts

Whaleflo magnetic pump working curve

APPLICATION FOR WHALEFLO MAGNETIC PUMP:

1.Chemical industrial sodium carbonate (hydrochloric acid, hydrofluoric acid, secondary chemicals production); The production offluoride and chemical fertilizers; Circulation of reaction liquid in gas absorption tower; Oil refining (sulfuric acid); Recovery andregeneration system of waste acid; Transportation of strong acids between chemical plants and vehides.

2.Shine chemicals for pharmaceutical industy, semiconductor (EL), pesticide, medicine, water treatment chemicals production

3.Electroplating industry circulation-filtering various plating solution.

4.Instant photography photo industry system; X-ay films, black and white, color, three dimensional picture of sun.

5.Electrical appliance industry, electrolytic capacitor production (erosion of aluminum film); Batteries and battery manufacturingprocess of transporting electrolyte;

6.Circuit board etching; High purity chemical liquid semiconductor manufacturing process.

7.Metal industrial alumina film processing equipment; Wire drawing, degreasing and picking steel rlling;

8.Vehicle degreasing and pickling treatment before painting; Titanium oxide, the production of rare earth elements, etc.

9.Mining metal melting (transportation and circulation of electrolyte); Washing of liquid waste.

10.The production ofod industry and glucose acid (hydrochloric acid); Extractionof edible oil (ulfric acid);Canned fruit industry

11.Medical artificial kidney, heart and lung, utrasonic cleaning machine, and various medical equipment.

12.Water cleaning ion exchange resins; Pure water production equipment; Seawater desalination equipment.

13.Pollution contro of sewage treatment chemicals is added to the liquid cylinder; Collecting and transporting waste liquid;

14.Waste gas absorption equipment (deodorization device, discharge waste gas desulfurization).

15.Other applications in silver recovery, wafer manufacturing, experimental factory, refrigerator, drink machine,life of boiler, heatexchanger, solar system, bleaching, laser systems and other fields and fountain, fish pond, ornamental fish tank circulation use.
