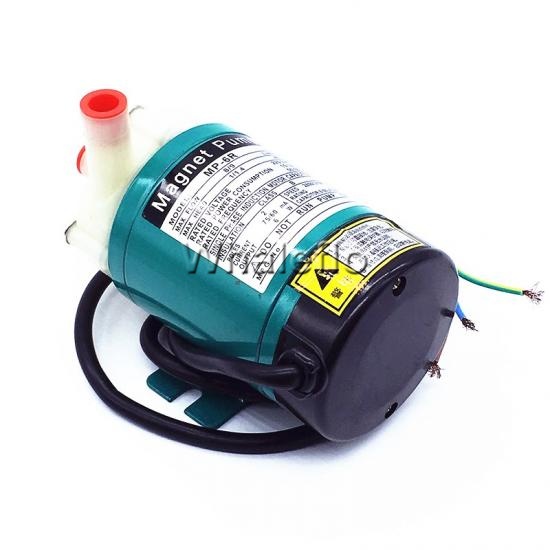

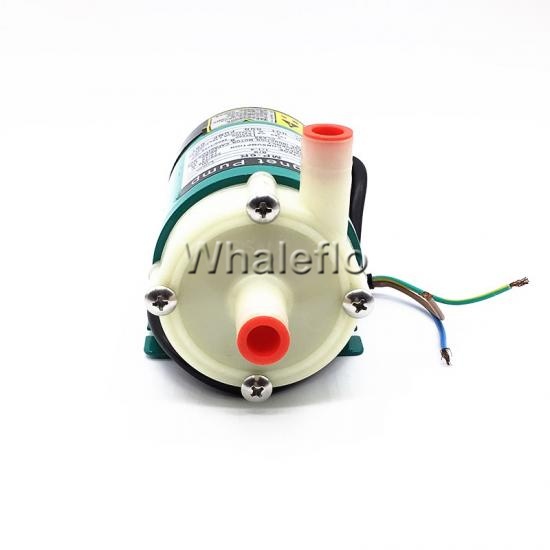

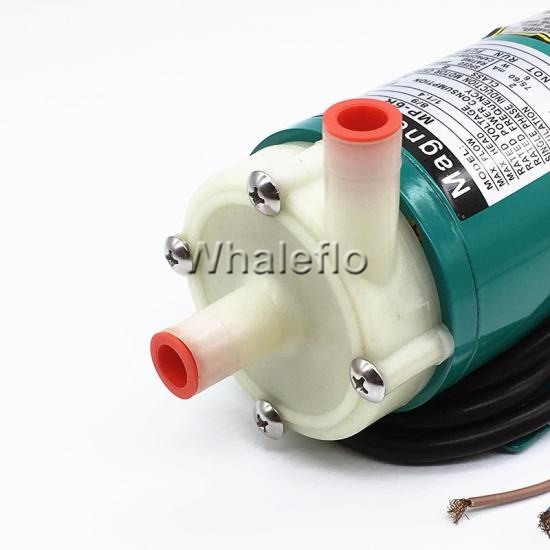

Whaleflo Magnetic Drive Pump MP-6R
The magnetic pump usescorrosion-resistant, high-strength engineering plastics,steel jade ceramics, which have goodanti-corrosion propertiesand can prevent the transported medium from being contaminated.
The magnetic pump replaces thesealing ringwith a static sealing ring, so that the pump is completely sealed, andthe sealing problem is completely solved.
All copper motor, the magnetic rotating part ismade of ferrite as the main material, the overcurrent part is made of stainless steel, and the most widely used non-leakage magnetic drive centrifugal pump
Whaleflo pump application
Chemical industry, pharmaceutical industry, daily necessities industry, food industry, machinery industry, electronics industry, electroplating industry, photo industry, mining, metal industry, pharmacy, electrical appliance industry, water treatment, pollution control
Whaleflo mag pump technical data
Model: MP-6R / RM / RZ / RZM
Rated voltage: 110V / 220V
Frequency: 50HZ / 60HZ
Power: 6W
Plug Type: US / EU / UK / AU (We offer US / EU / UK / AU power cord as your request. Customer needs to connect the pump and power cord by himself.)
Nominal capacity: 2.8 l / Min.
Rated head: 0.8m
Inlet / outlet size: MP-6R / RZ, 14mm / 14mm; MP-6RM / RZM, 1/2 "- 1/2"
Liquid temperature: 0-80 ℃ / 0-176 ℃
Net Weight: 1.0kg
Dimension: 13 * 7.5 * 8.3cm
Attention: This magnetic pump is not a self-priming pump, users need to make sure that the pump head is filled with liquid before use. It cannot be dried.
Whaleflomag pump parts
Whaleflo mag working curve
APPLICATION FOR WHALEFLO MAGNETIC PUMP:
1. Chemical industry: Sodium carbonate industry(production of hydrochloric
acid,hypochlorous acid,secondary chemical product); production of fluoride ,chemical
fertilizer;cycle of reactive liquid of gas absorb tower,abstract grease(sulfuric
acid);recycle&reactivation system of waste acid substance;transport of strong acid
beteen chemical factory and transport vehicle.
2. Pharmaceuticals industry: Production of luminophor(EL)for
semiconductor,pesticides,medicine,water treatment agent.
3. Electric plate: Cycle filter kinds of electroplating liquid.
4. Photograph processing: At-once photogragh system;X film,wash-out of black and
white,colour and solid photogragh
5. Electric appliance: Production of chemical capacitor(erosion by alum inurn
film),Transport electrolyte for manufacture of dry battery and accumulator;Etching circuit
board;Transfer high purity of chemical liquid during the manufacture of semiconductor.
6. Metal industry: Treament device for aluminum oxide film;Wire stretching;Oil
elimination and acid cleaning for steel rolling;Oil elimination and acid cleaning before
painting for vehicle;production of oxidized titanium and rare-earth element.
7. Mineral industry: Fusion metallurgy(Transport and recycle the electrolyte);handling
waste liquid.
8. Food industry: Production of gluconic acid(hydrochloric acid);abstracting cooking oil
(sulfuric acid);potted fruit industry(hydrochloric acid).
9. Medicine remedy: Man-made kidney and heart, ultrasonic washing machine and
various of medical equipment.
10. Water treatment:Cleaning ion exchange resin;pure water production equipment;sea-
water desalting equipment.
11. Pollution controll:Add waste water treament agent to medical liquid tank;collect and
transport waste liquid ;waste gas absorb equipment(deodorization
equipment,desulfurisation before waste gas discharge).
12. Other application: Applied in silver recycle,wafer manufacture,laboratory-ice making
machine,drinking machine,living boiler,heating cxchange machine,solar energy
system,dyeing,laser systenm,water spouting pool,rearing pond fish jar etc.
