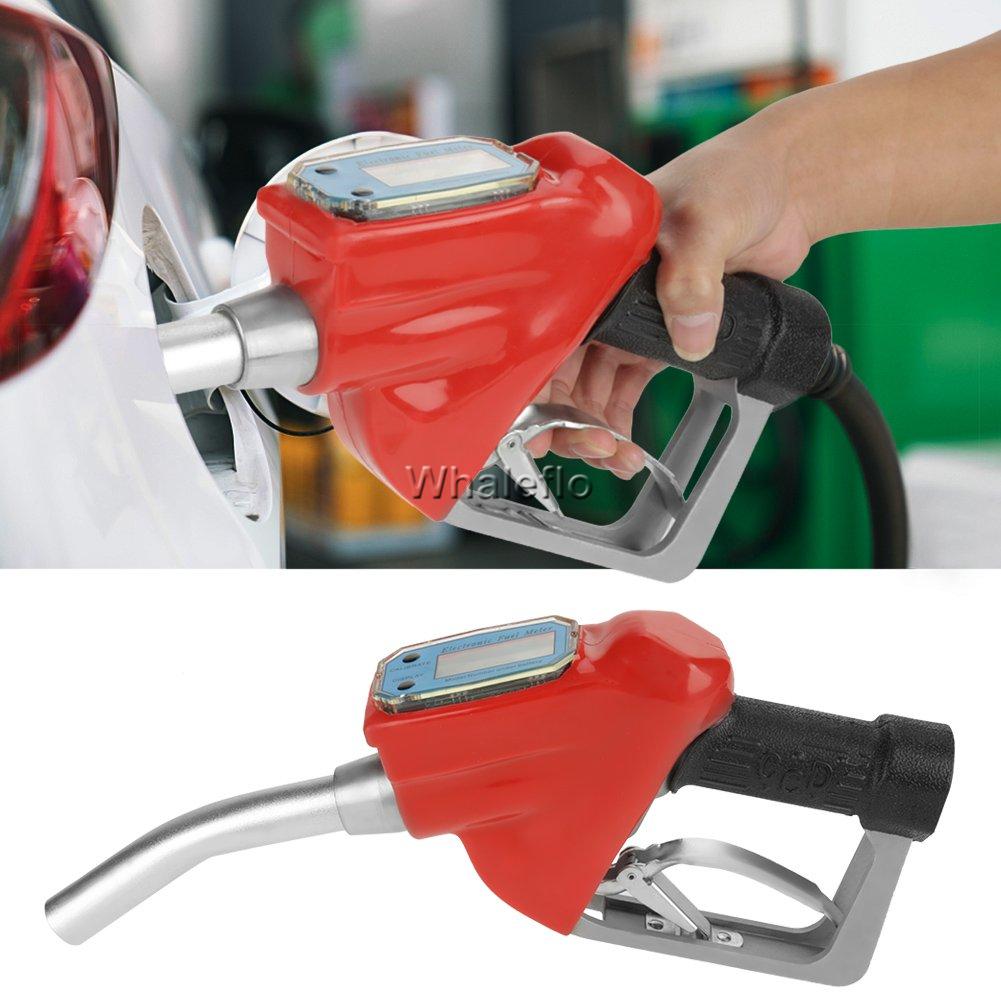

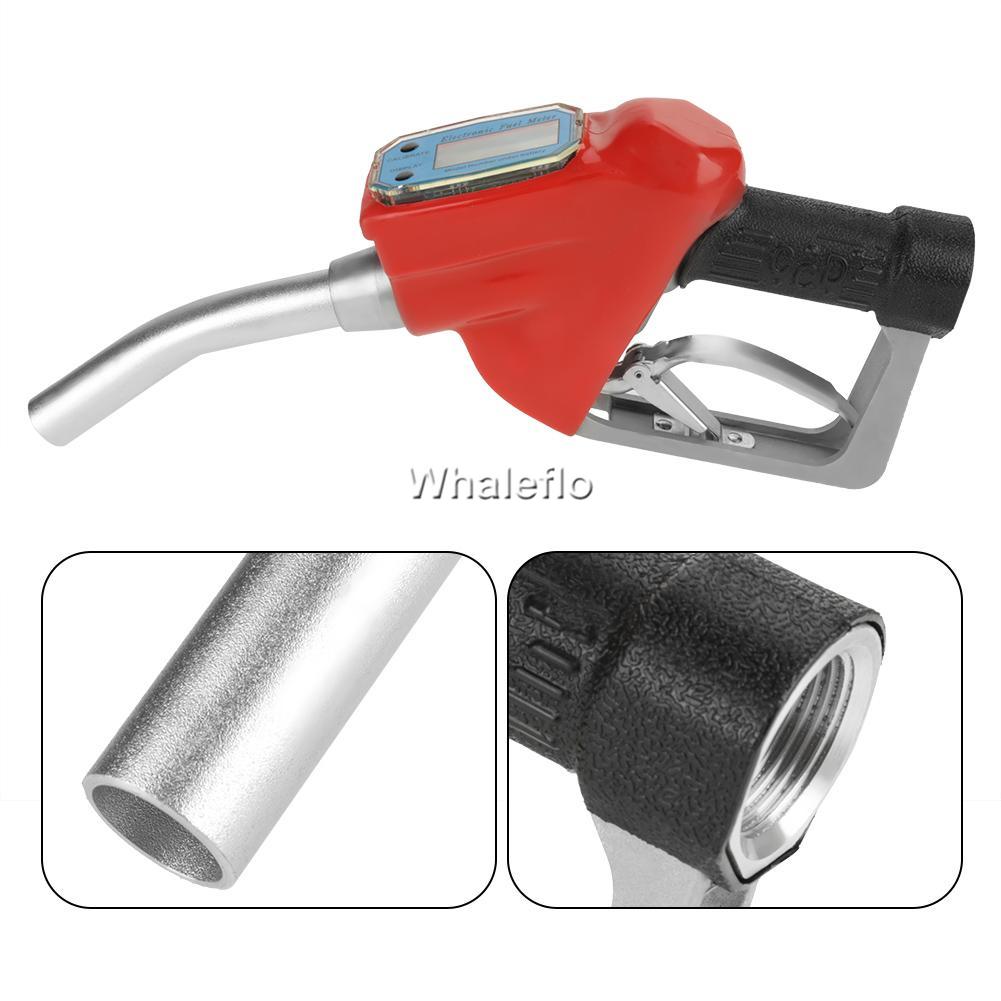

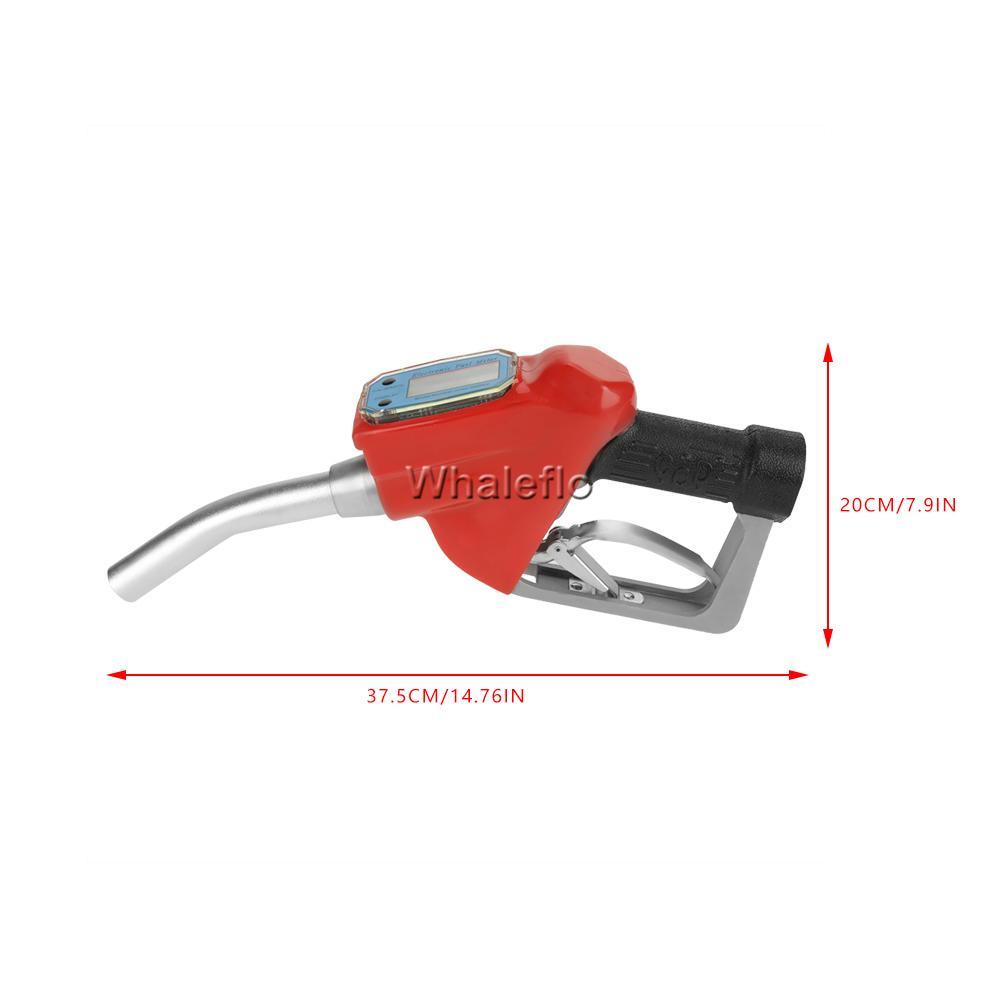

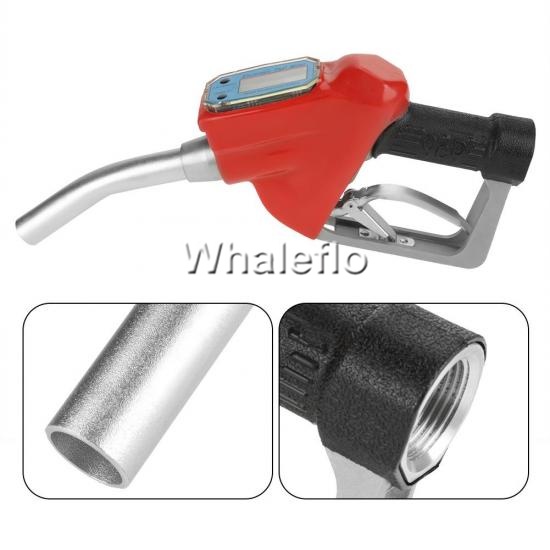

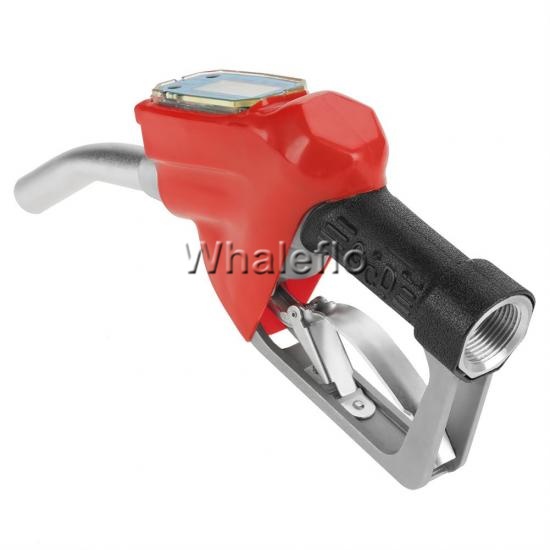

Whaleflo Digital Fuel Oil Gasoline Delivery Nozzle Gun With Flow Meter Supplier
Specification:
Oil inlet: NPT1", BSPT1".
Oil outlet: 25mm
Flux range: 0-120L/min
Accurancy:
Material:aluminum
Seals:Buna-N, bitonPressure: 0.25MPA
Suitable Fluid: Diesel, kerosene, gasoline
Features:
This oil gun nozzle can be used to measure the flow of pipeline fluid.
Well designed gun nozzle is resistant to oil dropping or leaking, small size, accurate measurement, simple operation.
It provides four units of Liters, Gallons, Pints and Quarts.
Used for filling fluid such as diesel, kerosene, gasoline.
It is a great oil filling equipment for factories, gas stations, etc.
Instruction:
1. Two buttons; (CALIBRATE) and (DISPLAY)
2. When changing unit, press and hold (CALIBRATE) button for 5 seconds, the digits on display will flash from left to right; press (DISPLAY) to move to the last position, unit will flash from top to bottom, then press (CALIBRATE) to select unit.
3. Standby state: standby state is low power consumption state; when there is measurement pulse input, it will display real-time filling quantities.
4. Measurement range is 9999.9, if over this range, it will automatically reset to zero.
5. Real-time filling amount reset: Press (DISPLAY) button to reset real-time quantity to zero. Cumulative quantity reset: take out battery, and when put battery back in, press and hold (DISPLAY) to reset cumulative quantity.
6. The default unit of real-time measurement is Liter (LRT).
7. At standby state or when it shows real-time filling quantity, press (CALIBRATE) to display cumulative filling quantity.
8. Release (CALIBRATE) button or when there is measurement pulse input, it will return to display of real-time filling quantity.
