Whaleflo 12V 24V Head 5M 1000L/H Micro Submersible Beverage Water Pump for Soft Drink Milk Tea Transfer
SPECIFICATIONS
Model: WEL-550-12/WEL-550-24
Materials Housing: ABS
Seal: Silicone
Impeller: Nylon PA66
Cable: PVC
Motor: Brush/Brushless
Magnet: Ferrites
Enameled wire: Copper 2UEW 130℃
Liquids: water, underground water, seawater, acohol, diesel. etc
Storage Temperature: -40~+60 Celsius degree
Liquid Temperature: -40~+60 Celsius degree
Ambient Humidity: 45%~90%
Voltage range: DC 6~12V/1.2A/14.5W /DC 18-26V/0.75/18W
Flow: 1000LPH
Max Head: 500cm
Noise: less than 35 dB (distance 20CM) in the water
Water Proof: IPX 68

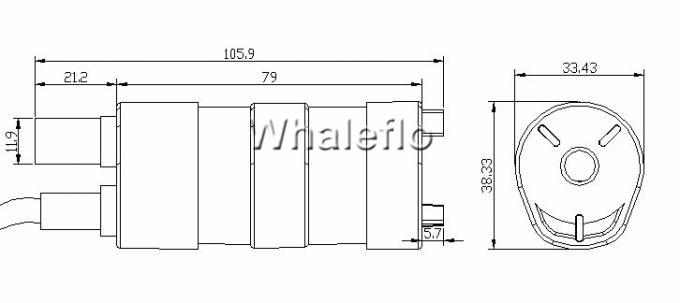

Dimension
USAGE SCOPE
Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
