Whaleflo 12V 24V 3500LPH Brushless Centrifugal DC Mini Water Pump Factory
Product Description
220V AC voltage can not be used directly!
- Brushless, permanent magnetic rotor. Adopt high performance ceramic shaft.
- It is smooth operation, high efficiency, good performance, long service life,
- Can be a long time continuous work, low noise, safety and environmental protection.
Usage:

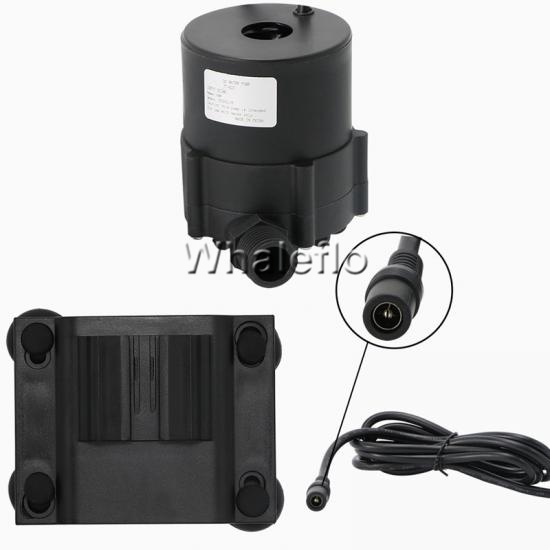

1. Female plug type: The water pump cable is attached with a female plug (size: 5.5x2.1mm), can be powered by a DC adapter directly.
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases. No diving without self-priming function, prohibit no water using.)

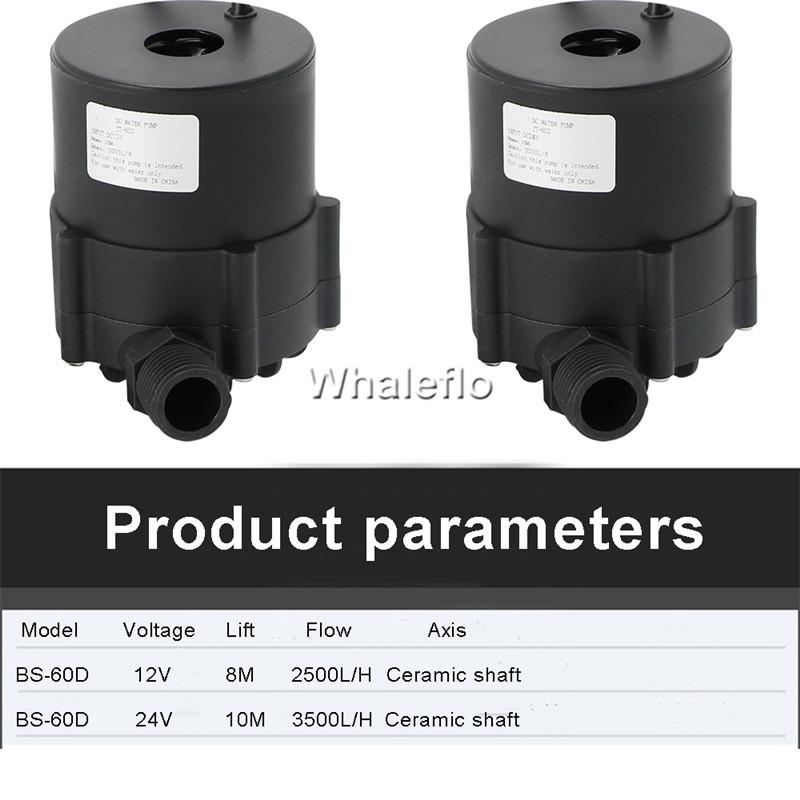

Specification
- Pump type: DC brushless water pump
- Voltage: 12V 24V DC
- Color: Black
- Max water flow Rate: 12V 2500L/H, 24V 3500L/H
- Max Water Head: 12V 8M / 24V 10M
- Plug type: 5.5*2.1mm female plug
- Ambient temperature: -40~100C
- Operating Humidity: less than 90%RH
- Liquid temperature: -40~100C
- Using liquid: water or Nonflammable liquid with good fluidity
- Operation place: Medical, fountains and so on
- Working Lifespan: 30000 hours
- Noise: ≤40DB
- Waterproof: IP68
Application:
it can be used in computer water cooling system.intellinget toilet.water heater,water dispenser, brewing machine,wine pouring machie,shower,foot surfing massage basin,car cooling circulation system,humidifier,air conditioner washing machine,medical devices,cooling systems,sanitary products.
Using Note
1. Please use the suitable voltage according to the specifications, do not beyond the voltage range.
2. Do not use with strong acidity, alkali and other damage liquid.
3. Water head does not mean the spraying height, but means the height inside of a pipe.
4. The max flow rate is based on the flow of horizontal condition in the standard test, every buyer uses it in different applications, so the water flow will be different (less than the max flow).
5. Our pumps are not self-priming pumps. It must be installed below the water level or submersible.
6. DC pumps are safety, stable, long lifespan, energy saving. We suggest you use it instead of AC pumps.
7. Continuous running is no problem! The pump will have a super long lifespan if correct using.
8. The diameter of pipe will directly affect the flow rate.
