Whaleflo bottled water dispensing system inside consist of two chamber diaphragm pump which use air pressure let water from one chamber to a faucet while the other chanber full of water.BW4000 series purified water from 5 gallon water tank to the faucets, ice marker,refrigerators and coffee makers.
The BW4000 series Bottled Water System including as following:
• 20 ft. ¼ in. O.D. polyethylene tubing
• Compression nut and sleeve
• Module that automatically fills or dispenses
• Suction wand with hose that transports the water
• Wall power adapter that powers the pump
• Built-in backflow prevention so water doesn’t flow back into the water bottle
• Automatic shut-off during high temperatures
How about bottled water dispenser installation?
Select a cabinet large enough to accommodate the 5 gallon (19L) bottle and suction wand assembly.
Place thePump Module on the floor of the cabinet with on/off switch and suction tube facing out toward the cabinet doors.Position as close as possible to a grounded electrical outlet and place the five gallon bottle close to the PumpModule without kinking the suction hose.
Whaleflo bottled water dispensing system for refrigerator may also be placed in a pantry, closet, cellar or other location where agrounded electrical outlet is available.

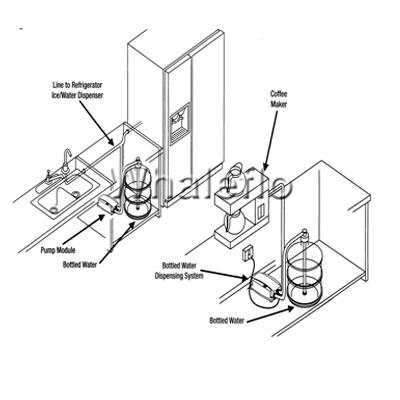

How about Bottled Water Dispensing System work?
Whaleflo Bottled Water Dispensing System was designed to pump purified water from a commercially available
5-gallon purified water bottle. The system will deliver the water under pressure to an individual drinking
water faucet,the water inlet of a refrigerator for the icemaker and chilled drinking water tap, and to
certain commercial coffee or tea brewers.When the suction wand is inserted into the standard 5-gallon bottle,
it will activate the float switch on the end of thewand and turn on the pump. This same float switch shuts
off the system when the bottle is empty. The wand has abuilt in back-flow preventor valve that prevents water
in the system from flowing back into the bottle, or pilling whilechanging bottles.
The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance orfaucet, and stops automatically.
The system is equipped with an automatic thermal cut-off device for additional protection.
bottled water dispensing system for refrigerator Troubleshooting
System Will Not Dispense Water
. Check on/off switch position
. Check power to dispensing system
. Check location of suction wand in bottle
. Check for empty bottle
. Check for air in system
Discharge Tube Leaks At Fitting
. Push tube all the way into tube stop
. Remove tube and cut 1/4 in. (6.35 mm)off end, square and reinstall
. Check correct tube size in fitting, tube sizeis 1/4 in. (6.35 mm) O:D.
Fitting should be1/4 in. (6.35 mm) I.D.
System Gets warm and turns off
. Check the float switch
. Check for leaks in discharge tube
System Will Not Shut-Off
. Check for leaks in tubing system. Check for leaks at tube fittings
. Check for leaks at faucet, ice maker orrefrigerator water valve
. Check pressure switch by turning faucetoff and on
. Check float switch position in bottle
. Check for air in system
System Continually Turns Off and OnWhile in Use
. Check for restriction devise at appliance inlet.. Check for filter unit in line.
. Check for internal filters in the refrigerator.
System will not shut-off
.Check for leaks in tubing system
.Check for leaks at tube fittings
.Check for leaks at faucet, ice maker or refrigerator water value
.Check pressure switch by turning faucet off and on
.Check float switch position in bottle
Discharge tube leaks at fitting
.Push tube all the way into tube stop
.Remove tube and cut 1//4in.(6.35mm)
off end, sqare and reinstall
.Check correct tube size in fitting, tube size is 1/4in.(6.35mm)O.D..Fitting should be
1/4in.(6.35mm)I.D.
