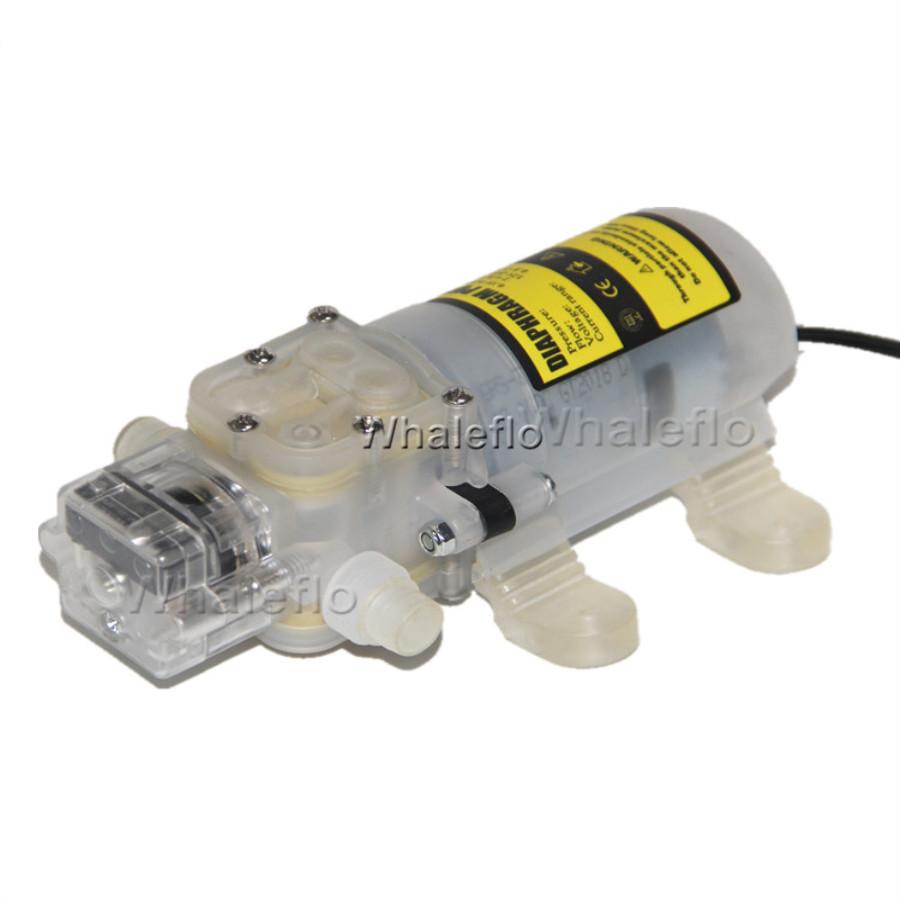

Whaleflo 30W 12V 3.8LPM Food Grade Diaphragm Pump
Whaleflo Food Grade Pump Basic information
Theory:diaphragm pump electric drive
Pump design:2 chamber diaphragm
Inlet/outlet:10mm hose barb,18mm NPT
Liquid temp:max 60℃
TECHNICAL DATE
|
Model |
Volt |
Power |
Protect valve |
Max.working pressure |
Flow rate |
Amps |
Suction |
Lift |
|
FLO-2230 |
12 |
30 |
Pressure switch |
4bar/58psi |
3-4LPM |
2.5A |
1.2M |
40m |
|
FL0-2260 |
12 |
60 |
Pressure switch |
4bar/58psi |
4-5LPM |
3.5A |
1.5M |
50m |
|
FLO-2230-1 |
24 |
30 |
Pressure switch |
5bar/75psi |
3-4LPM |
1A |
1.3M |
45m |
|
Pump head material |
PC/PP/TPV(FDA)/SS 304 |
Pump body |
Pure copper motor/PC/PVC,etc. |
|||||
