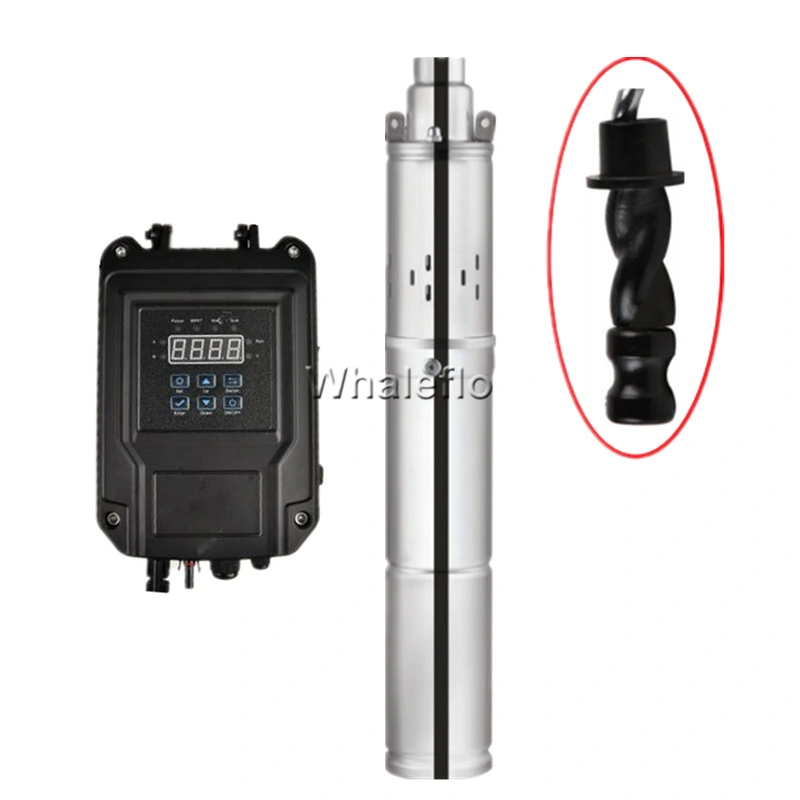

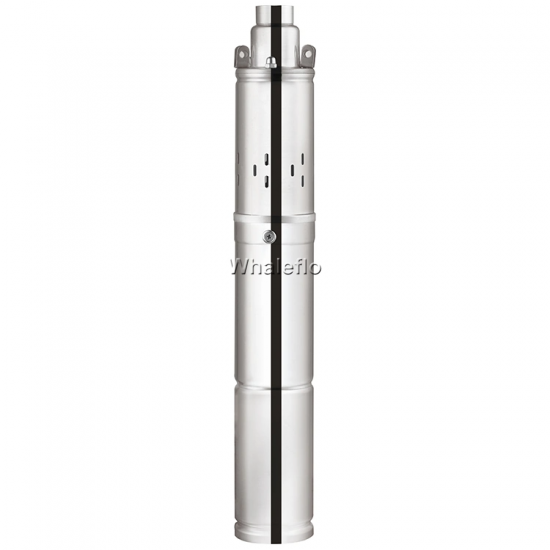

Whaleflo 1000W Brushless DC 60V Solar Water Pump - 160M Head, External Controller
Screw solar water pump Specifications:
Material: Stainless Steel
Color: Silver
Power:1000W
Voltage: 60v
Max Flow Rate: 2m³/H
Head:160m
Pump dia:80mm/3"
Outlet:25mm/1"
Working Principle: Screw Pump
Electric Motor: Permanent Magnet Brushless DC Motor
Screw solar water pump Features:
* High precision, corrosion resistance, long service life.
* External MPPT controller to make full use of solar energy.
* The water pump can connect directly to the solar panel in the sunlight without connecting the battery.
* The water pump need to connect with battery and controller if it works at night or in the cloudy day.
* Suitable for hand mining, agriculture, construction, aquaculture and high-rise water supply and more.
Overvoltage Protection / Undervoltage Protection:
screw solar water pump Attention:
* Do not use the pump over max lift.
* Pumps must be submerged in water.
* The water pump cannot work long without water.
* The positive and negative lead of the water pump should be connected correctly.
* Water requirement: please do not select diameter of less than 25 mm pipe connecting pumps, pipe blockage is forbidden, bending, such as forced reduce pipe outlet diameter, otherwise it will cause the pump working current too high, motor damage.
Package Includes:
1x Solar Water Pump (solar panel not included)
| Model | power(W) | Volt(v) |
Head(m) |
pump diameter(mm) |
Outlet(mm)
|
| WEL2-750-140 | 750 | 48 | 140 | 80 | 25 |
|
WEL2-1000-160 |
1000 | 60 | 160 | 80 | 25 |
|
WEL2-1200-180 |
1200 | 72 | 180 | 80 | 25 |
Experience enhanced water pumping efficiency with the Whaleflo 1000W Brushless DC Solar Water Pump. With a formidable 160-meter head capacity, this solar-powered pump ensures reliable water supply for various applications. The inclusion of a user-friendly external controller provides precise control over the pump's performance, allowing customization to meet specific water delivery needs. Designed for durability and efficiency, Whaleflo's solar water pump is an ideal solution for agricultural irrigation, livestock watering, and remote water supply, harnessing the power of the sun for sustainable and eco-friendly operations.
