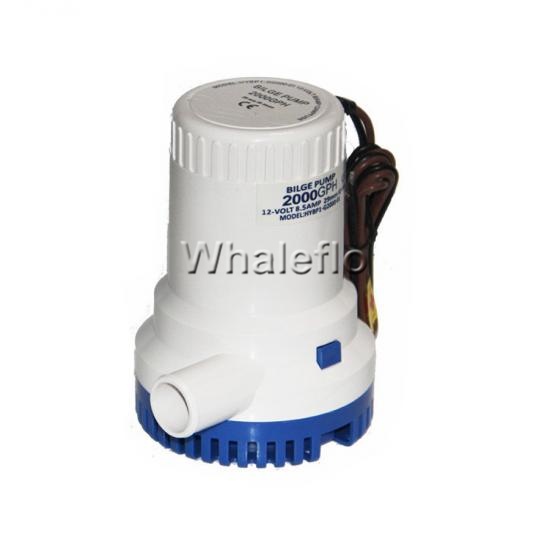

Heavy 2000GPH Marine Commercial boat bilge pump replace equipment
2000GPH bilge pump

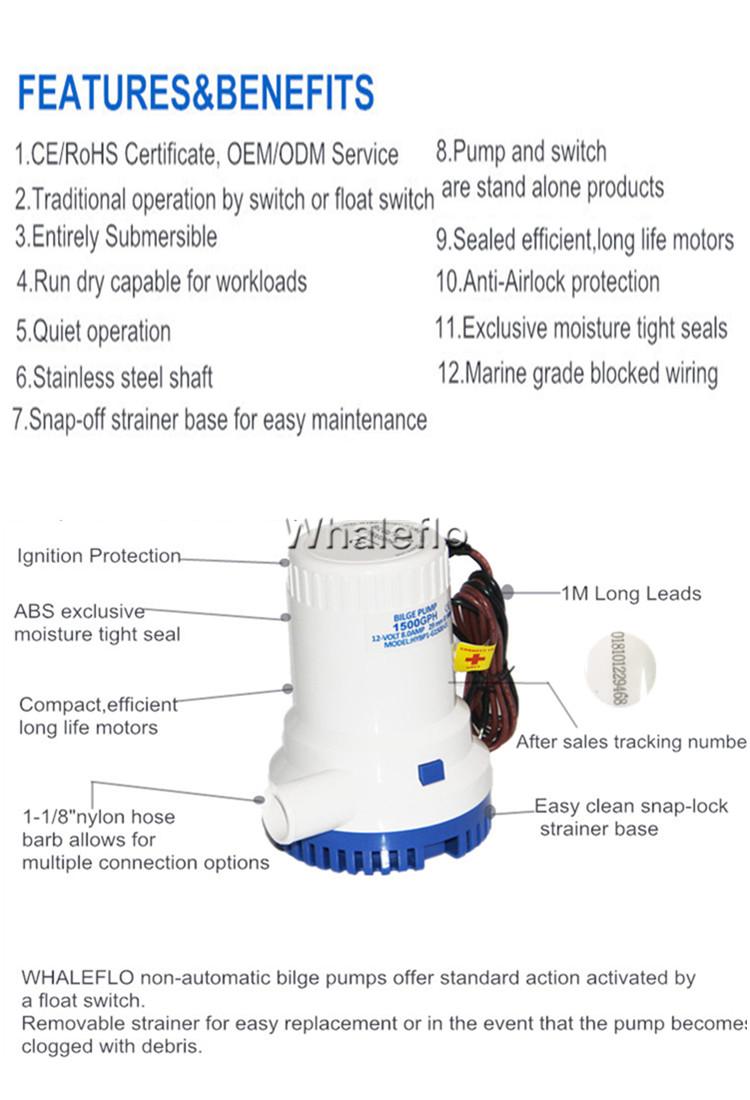

2000GPH (7600LPH)bilge pump with 2 year warranty
1-1/8’’(28.6mm)hose barb discharge outlet.
12V & 24V with 6 foot Wire leads
Stainless steel shaft
anti-rust and corrosion performance
submersible completely
Motor allow cleaning and impeller area can be removal
Easy to clean snap lock strainer
Water cooled motor for long life and ignition protected avoid burn-out
Run dry is available
Ideal float switch for bilge pump is available
Silent and vibrationless operation
Exclusive moisture tight seals
Impact Resistant ABS housing
Whaleflo bilge pump application
Worldwide boat builder used,Marine grade blocked wiring,Agriculture sprayer , irrigation,swimming pool, cleaning field,aquarium,Bilge water emissions from ship,Sea breeding ornamental,Fresh water treatment, waste water treatment,Water cycle treatment.
Whaleflo Pump Specification
Model：WELBP1-G2000-01
HEAD: 6m , Volt：12v/24v , Amps：10A/5.5A
Wire:100CM( 6 foot),Outlet hose:29mm

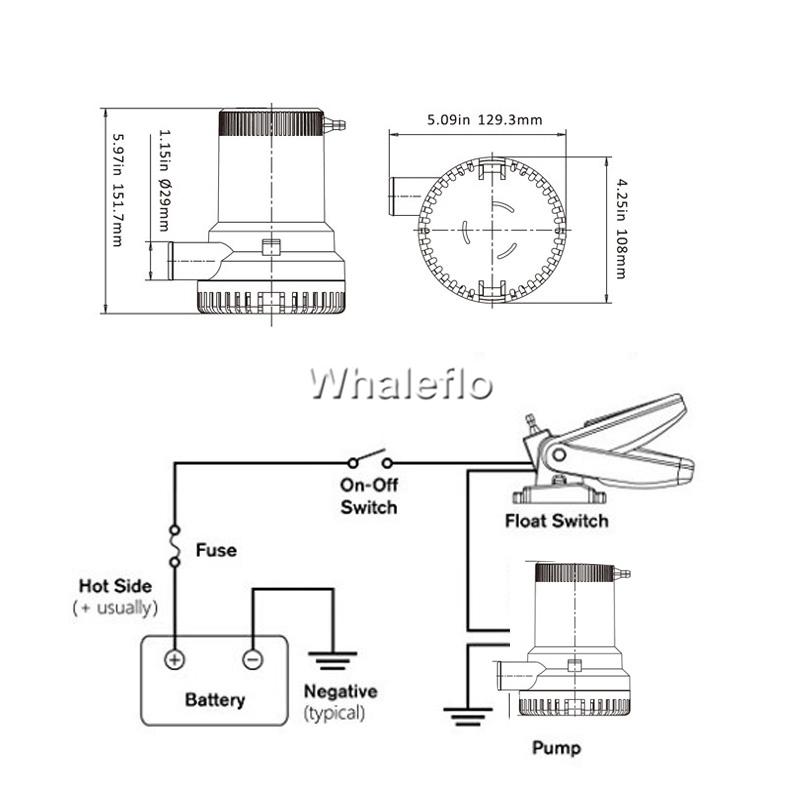

Technical data & drawing
| Model | Volt | Flow rate | Head | Current | Wire | Outlet Dia |
| WELBP1-G-2000-01 | 12 | 2000GPH | 6M | 10A | 100cm | 29mm/1-1/8'' |
| WELBP2-G-2000-01 | 24 | 2000GPH | 6M | 5.5A | 100cm | 29mm/1-1/8'' |
|

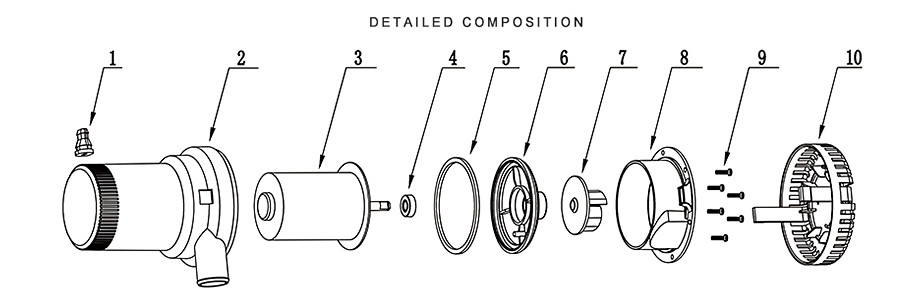

Key
|
Description
|
Quantity
|
|
1
|
Wire Buckle |
1
|
|
2
|
Pump Housing |
1
|
|
3
|
Motor |
1
|
|
4
|
Seal Base |
1
|
|
5
|
Seal |
1
|
| Key | Description | Quantity |
| 6 | Motor Bracket | 1 |
|
7
|
Impeller |
1
|
| 8 |
Pump Cover |
1 |
|
9
|
Tapping Screw |
6
|
|
10
|
Strainer |
1
|
