17LPM 45PSI DC electric Self-priming RV Boating 12V Diaphragm Pressure caravan fresh pump
Product Description
Whaleflo 12V caravan pump FL series is ideal water transfer in caravan,RV,marine, garden,camping,boat, outdoor and with self-priming ability. FL series pump has four diaphragm pump.Whaleflo 12v fresh caravan water pump pressure vary from 17-60PSI, Flow from 10-17LPM.
Whaleflo 12v caravan pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
DP pump with 1/2’’(12mm) hose barb,3/4’’ male thread and 3/4’’ female thread.
Pump working duty: working intermittent
Performance

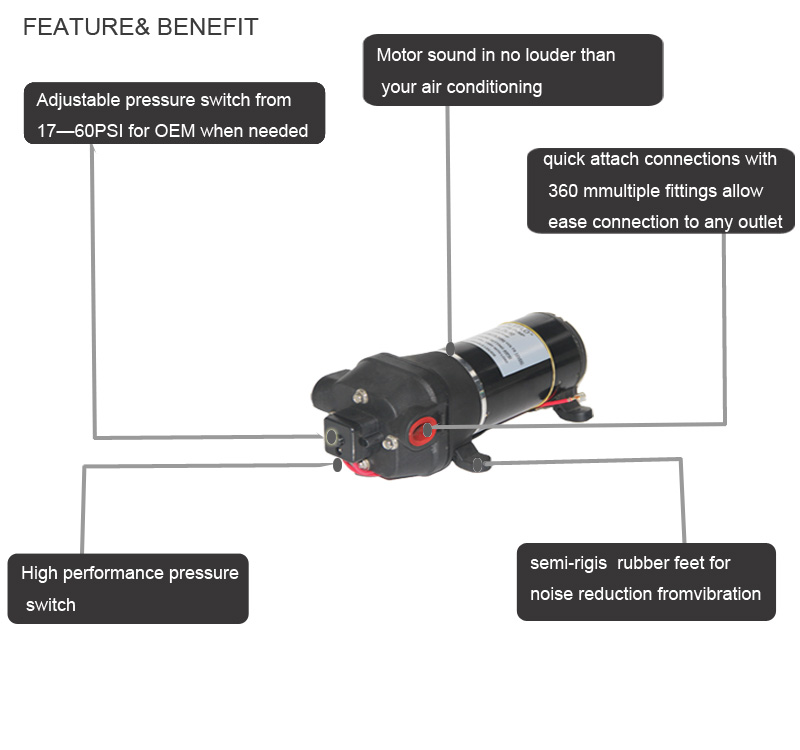

High flow, self-priming, Dry run with damage , Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
caravan,RV,marine, garden,camping,boat, outdoor
Technical Data
|
Model |
Volt（V)） |
Open Flow（LPM/GPM） |
Demand Pressure( PSI/Bar) |
Amps Draw( A) |
Check value |
Diaphragm |
Ports |
Wire connection |
|
FL30 |
12 |
10(2.6) |
17(1.17) |
2.2 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL31 |
24 |
10(2.6) |
17(1.17) |
1.5 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL35 |
12 |
12.5(3.3) |
35(2.41) |
7 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL34 |
24 |
12.5(3.3) |
35(2.41) |
4 |
EPDM/VITON |
Santoprene |
3/4‘’ |
2-pin/ Leads |
|
FL60 |
12 |
17(4.5) |
60(4.13) |
13.2 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL44 |
24 |
17(4.5) |
40(2.76) |
5.6 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL40 |
12 |
17(4.5) |
40(2.76) |
9.2 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL33 |
115 |
12.5(3.3) |
35(2.41) |
0.8 |
EPDM/VITON |
Santoprene |
3/4” |
2-pin/lLeads |
|
FL32 |
220 |
12.5(3.3) |
35(2.41) |
0.4 |
EPDM/VITON |
Santoprene |
3/4'' |
2-pin/Leads |
|
FL41 |
115 |
17(4.5) |
40(2.76) |
1.5 |
EPDM/VITON |
Santoprene |
3/4" |
2-pin/Leads |
|
FL43 |
220 |
17(4.5) |
40(2.76) |
0.8 |
EPDM/VITON |
Santoprene |
3/4" |
2-pin/Leads |
|
Pump Design |
4 chamber Daiphragm |
|
Port size |
3/4''(19mm) female thread |
|
Connector |
1/2'' hose barb , 3/4'' BSPT thread |
|
Voltage |
12V, 24V ,115V,230V |
|
Check value |
EPDM or VITON |
|
Liquid temp |
140F(60C) maximum |
|
Seld-priming |
6.5 feet （ 2M）suction Lift |
