12V DC Gas Hot Water Heater Camping Shower Pump 6L/min
Product Description

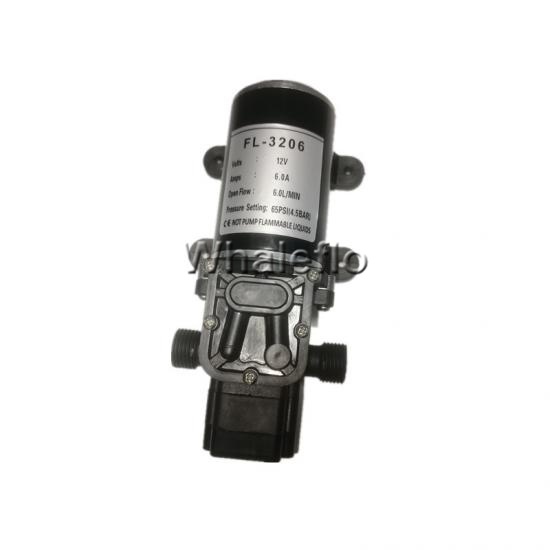

Whaleflo Fl-3206 diaphram self-priming pressure water pump 6LPM for Caravan RV.
1. This diaphragm pressure pump is ideal for any area that requires water delivery. Ideal for caravans, boats, RVs and camping.
2. Easy to operate and self-priming.
3.Suitable for camping, camping, boating, lakes, showers and other purposes
4. Compact and lightweight, easy to install.
5. CE certification/Rohs Report - with 1 year warranty.
6. If you have a gas water heater, we strongly recommend that you purchase this pump!
7. There are arrows on the pump that represent the direction of the water flow. the right side of the pump port is the water outlet and the left side is the water inlet.
Features
Adjustable pressure switch for OEM,Max pressure can be 110psi.
Thead or Hose connections with multiple fitting allow connection to any outlet.
Motors sounds no lounder than your room fan running.
Rubber Feet for noise reduction from vibration.
Technical Date
Pump design:2 Chambwer Diaphragm
Port size:3/8"(9.5mm) hose barb,1/2"(12.5mm）,1/2"NPT,1/2"-14MNPT
Voltage:12V/24V
Check Valuve:EPDM or Viton
Liquid Temp:140°F（60°C）Maximun
Self-Priming:4.8feet(1.5M)suction
Package:30pcs/ctn 55*40*28cm ,37KG
| Item number | Volt | Max Flow | Max Pressure Psi/bar | Amps(a) | N.W/G.W |
| FL-3202 | 12v dc | 5.1lpm(1.34gpm) | 80 | 4.8 | 1.12/1.22 |
| FL-3402 | 24v dc | 5.1lpm(1.34gpm) | 80 | 2.8 |
1.12/1.22 |
| FL-3203 | 12v dc | 5.1lpm(1.34gpm) | 100 | 5.0 |
1.12/1.22 |
| FL-3403 | 24v dc | 5.1lpm(1.34gpm) | 100 | 3.0 |
1.12/1.22 |
| FL-3206 | 12v dc | 6.0lpm(1.58gpm) | 60 | 6.0 |
1.12/1.22 |
